Connection accessories Probes Multiprobe set

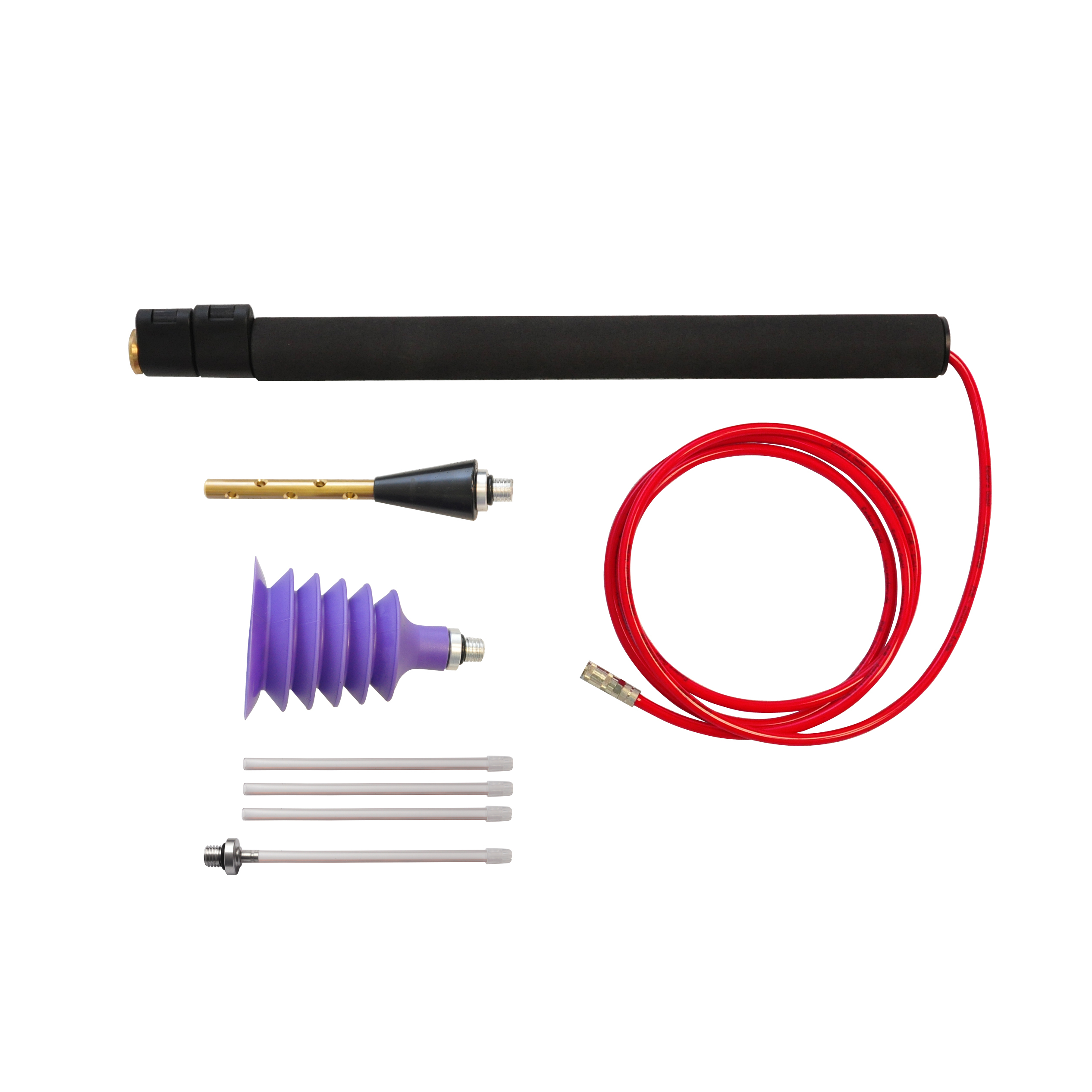

Multiprobe set – 282015
Multiprobe set
Multiprobe set
– telescopic handle multiprobe with connecting hose
– screwable pinhole probe, for measuring of high
concentrations in pinholes
– screwable bell probe for measuring on wayless surfaces
– screwable ambient air probe und 3 replacement tips
Prices for customers after registration
1
Article affiliation:
OLLI with certified measuring function
Gas measurement & warning instrument
Explosion-proof & compact handheld gas measurement instrument
as diffusion device. It can be used for up to 5 combustible and toxic
gases as well as oxygen and comes in an extremely rugged
2C synthetic housing with a Li-Ion rechargeable battery.
Up to 3 gas sensors can be installed (Ex/Ox/Tox). Assembly is based
on customer requirements. Moreover, a pressure sensor can be
installed. The instrument can be equipped with an optional pump.
Operating time > 50 hours (depending on type & number of installed
sensors and ambient conditions, w/o illumination)
Measurement ranges are subject to sensor assembly
Dimensions: 136 x 78 x 43 mm
Weight: approx. 350 g
Explosion-proof measurement instrument (active & passive)
Measuring function certified for methane (CH4), propane (C3H8), oxygen (O2), carbon
monoxide (CO), carbon dioxide (CO2), hydrogen sulfide (H2S) according to the following
standards:
EN 60079-29-1
EN 50104
EN 45544-1
EN 45544-3
Marking: II 2G Ex ib db IIB T4 Gb
(EU-)type examination certificates:
BVS 17 ATEX E 043 X
TÜV 21 ATEX 8596 X
TÜV 21 PTG 7001 X
968/FSP 1940.05/21
Temperature range: -20°C <= Ta <= +50°C
OLLI INMETRO with certified measuring function
OLLI gas measurement & warning instrument
Explosion-proof & compact handheld gas measurement instrument
as diffusion device. It can be used for up to 5 combustible and toxic
gases as well as oxygen and comes in an extremely rugged
2C synthetic housing with a Li-Ion rechargeable battery.
Up to 3 gas sensors can be installed (Ex/Ox/Tox). Assembly is based
on customer requirements. Moreover, a pressure sensor can be
installed. The instrument can be equipped with an optional pump.
Operating time > 50 hours (depending on type & number of installed
sensors and ambient conditions, w/o illumination)
Measurement ranges are subject to sensor assembly
Dimensions: 136 x 78 x 43 mm
Weight: approx. 350 g
Explosion-proof measurement instrument (active & passive)
Measuring function certified for methane (CH4), propane (C3H8), oxygen (O2), carbon
monoxide (CO), carbon dioxide (CO2), hydrogen sulfide (H2S) according to the following
European standards:
EN 60079-29-1
EN 50104
EN 45544-1
EN 45544-3
Applied Brazilian standards:
ABNT NBR IEC 60079-0
ABNT NBR IEC 60079-1
ABNT NBR IEC 60079-11
Marking: Ex db ib IIB T4 Gb
Certificates: DNV 22.0010 X
Temperature range: -20°C <= Ta <= +50°C
OLLI
Gas measurement & warning instrument
Explosion-proof & compact handheld gas measurement instrument
as diffusion device.
It can be used for up to 5 combustible and toxic
gases as well as oxygen and comes in an extremely rugged
2C synthetic housing with 3 alkaline manganese primary cells.
Up to 3 gas sensors can be installed (Ex/Ox/Tox). Assembly is based
on customer requirements. Moreover, a pressure sensor can be
installed. The instrument can be equipped with an optional secondary
cell and/or optional pump.
Operating time > 20 hours (depending on type & number of installed
sensors and ambient conditions, w/o illumination)
Measurement ranges are subject to sensor assembly
Dimensions: 136 x 78 x 43 mm
Weight: approx. 350 g
Explosion-proof measurement instrument, marking:
II 2G Ex ib db IIB T4 Gb
BVS 17 ATEX E 043 X
Temperature range: -20°C <= Ta <= +50°C
OLLI INMETRO
OLLI INMETRO gas measurement & warning instrument
Explosion-proof & compact handheld gas measurement instrument
as diffusion device. It can be used for up to 5 combustible and toxic
gases as well as oxygen and comes in an extremely rugged
2C synthetic housing with a Li-Ion rechargeable battery.
Up to 3 gas sensors can be installed (Ex/Ox/Tox). Assembly is based
on customer requirements. Moreover, a pressure sensor can be
installed. The instrument can be equipped with an optional pump.
Operating time > 50 hours (depending on type & number of installed
sensors and ambient conditions, w/o illumination)
Measurement ranges are subject to sensor assembly
Dimensions: 136 x 78 x 43 mm
Weight: approx. 350 g
Explosion-proof measurement instrument
Applied Brazilian standards:
ABNT NBR IEC 60079-0
ABNT NBR IEC 60079-1
ABNT NBR IEC 60079-11
Marking: Ex db ib IIB T4 Gb
Certificates: DNV 22.0010 X
Temperature range: -20°C <= Ta <= +50°C
