gas hose, length 10 m for Mobile Gas Flare M
NBR, both sides Camlock Adapter. Coupling DN 25 on one side,
nipple DN 25 on the other, max. pressure 16 bar)
Pressure hose, gas resistant, length 3 m, NBR DN13,
one side nipple series 2520, other side claw coupling,
max. pressure 16 bar
For pressurising pipelines via test specimen HEINZ)
Pressure hose DN 20 x 10 meters for MPP 70-35
both. series 5020 plug nipple and protective cap)
gas hose, length 5 m for Mobile Gas Flare M
NBR, both sides Camlock Adapter. Coupling DN 25 on one side,
nipple DN 25 on the other, max. pressure 16 bar)
- drain hose for use with the test head HANS and EDS2-V
- nominal diameter DN16 for low pressure loss and optimal flow rate
- Geka coupling on one side, nipple S 5020 on the other side)
- for tightness and stress test
- with drain valve and two couplings S 20 for connection of hand pump
and pressure measurement instrument
- cross fitting for connection to coupling S 21
- max. pressure 2 bar)
In- and output tube with gas bubble to pressure bumpless usability testing)

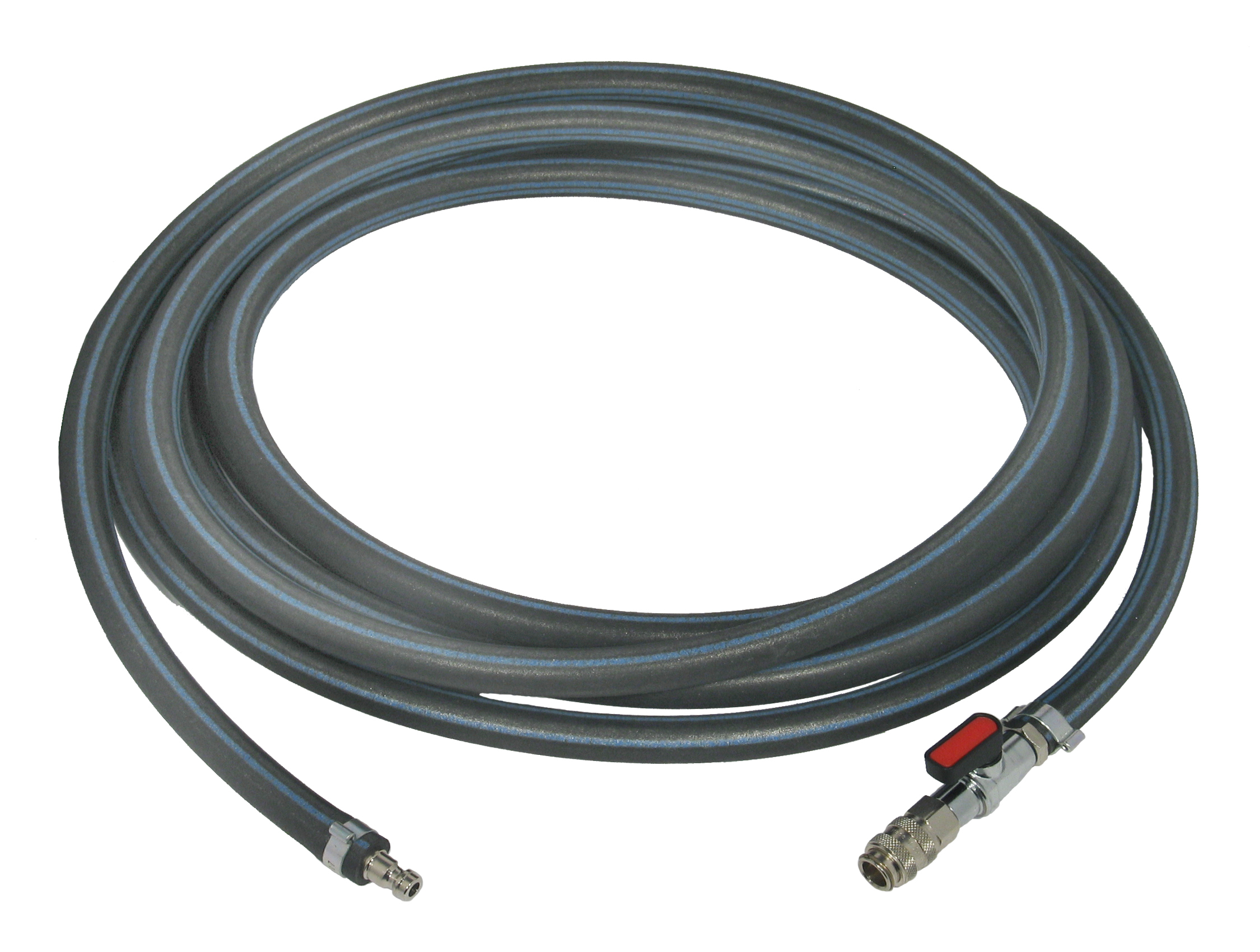

Exhausting hose electroconductive
length: 10 m
with nipple S 21 and ball valve for the gas exhausting
highly flexible, inner diameter 8 mm with 3,5 mm wall thickness
flow rate ca. 2 m³/h at 20 - 30 mbar)
for MPP 11 an MPP 28
both-sided plug nipple 5020 and protection cap)
for pressure testing on both sides of two-pipe meters.
The two paths can be blocked separately by ball valves.)
Gas hose DN 50, length 5 m
- electroconductive hose with R < 10 to the 6 Ohm
with Camlock coupling and Camlock nipple
- operating pressure 20 bar
- operating temperature: -30 °C bis +80 °C short-period 95 °C
- bend radius 408 mm
- NBR)
1620 stainless steel ø 2/4 mm
max. operating pressure 400bar)
for serviceability & regulator test
with nipple to connect the pressure balloon for safety valve test to conduct a manual regulator test.
For serviceability test and automatic regulator test the nipple remains unused.)
Gas hose DN 50, length 10 m
- electroconductive hose with R < 10 to the 6 Ohm
with Camlock coupling and Camlock nipple
- operating pressure 20 bar
- operating temperature: -30 °C bis +80 °C short-period 95 °C
- bend radius 408 mm
- NBR)
for MPP 30 and MPP 68
both-sided plug nipple 5020 and protection cap)
with connection nipple series 21, ball valve for HESV)
red 4 mm,
length: 2 m)
length: 5 m
with nipple S 21 and ball valve for the gas exhausting
highly flexible, inner diameter 8 mm with 3,5 mm wall thickness
flow rate ca. 2 m³/h at 20 - 30 mbar)
Connecting hose coupling S 20 - nipple S 21
PUR red 4 mm, length: 1 m)
Gas hose DN 32, length 10 m
- electroconductive hose with R < 10 to the 6 Ohm
with Camlock coupling and Camlock nipple
- operating pressure 20 bar
- operating temperature: -30 °C bis +80 °C short-period 95 °C
- bend radius 256 mm
- NBR
