Adapter 1620C to 1/4 inch ET stainless steel - 222011

Test head (stainless steel) with 4 plugs for pressure instrument, manual pressure gauge, electric waterpump and water flowmeter

Menu-driven pressure test procedures for water pipes according to German DVGW W 400-2 - Contraction procedure - Accelerated normal procedure - Normal procedure - Influence-minimized normal procedure

Menu-driven test procedures for pressure tests on water pipes according to rules and regulations of EN 805 (Europe): - Contraction procedure - Normal procedure

Menu-guided pressure test procedures for gas service lines. This menu item allows for a combined strength test (in accordance with German DVGW G 459-1) and subsequent tightness test of gas house connections with low pressure.

P max: 60 bar and equipped with quick couplings and protective caps. In contrast to the HEINZ specimen, this specimen has two ball valves with quick couplings 5010 and one quick coupling 2510 without ball valve. A screw coupling -VA- is provided for connecting an external pressure sensor of the smart memo.

Electronic pressure test case for pressure tests with connection possibility of up to 5 external pressure or temperature sensors. - the test procedures are menu-guided and can be carried out with simple Data entry dialog - a freely programmable pressure test is included - optional test sequences for gas and water tightness tests e.g. according to DVGW, ÖVGW, EWE, Avacon, WEVG. - a subsequent addition of test sequences is possible easily - large, illuminated display, even in direct sunlight easy to read - Data entry and signature via touch display and foil keys - Stylus for the touch display included - Data memory for hundreds of measurements, depending on test sequence - Communication via Bluetooth for update, data transmission, printer - LTE / GPS module (optional) - robust case (IP 67) - Operating time approx. 200 hours, extension with power supply possible from outside Dimensions: 220 x 90 x 168 mm Weight: approx. 1450 g

DruckTest GaWa - battery 2/25 bar measurement range 0 - 2 bar and 0 - 25 bar Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

DruckTest GaWa HMG2 - rechargeable battery 2/25 bar measurement range 0 - 2 bar and 0 - 25 bar Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

DruckTest GaWa - battery 2/10 bar measurement range 0 - 2 bar and 0 - 10 bar Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

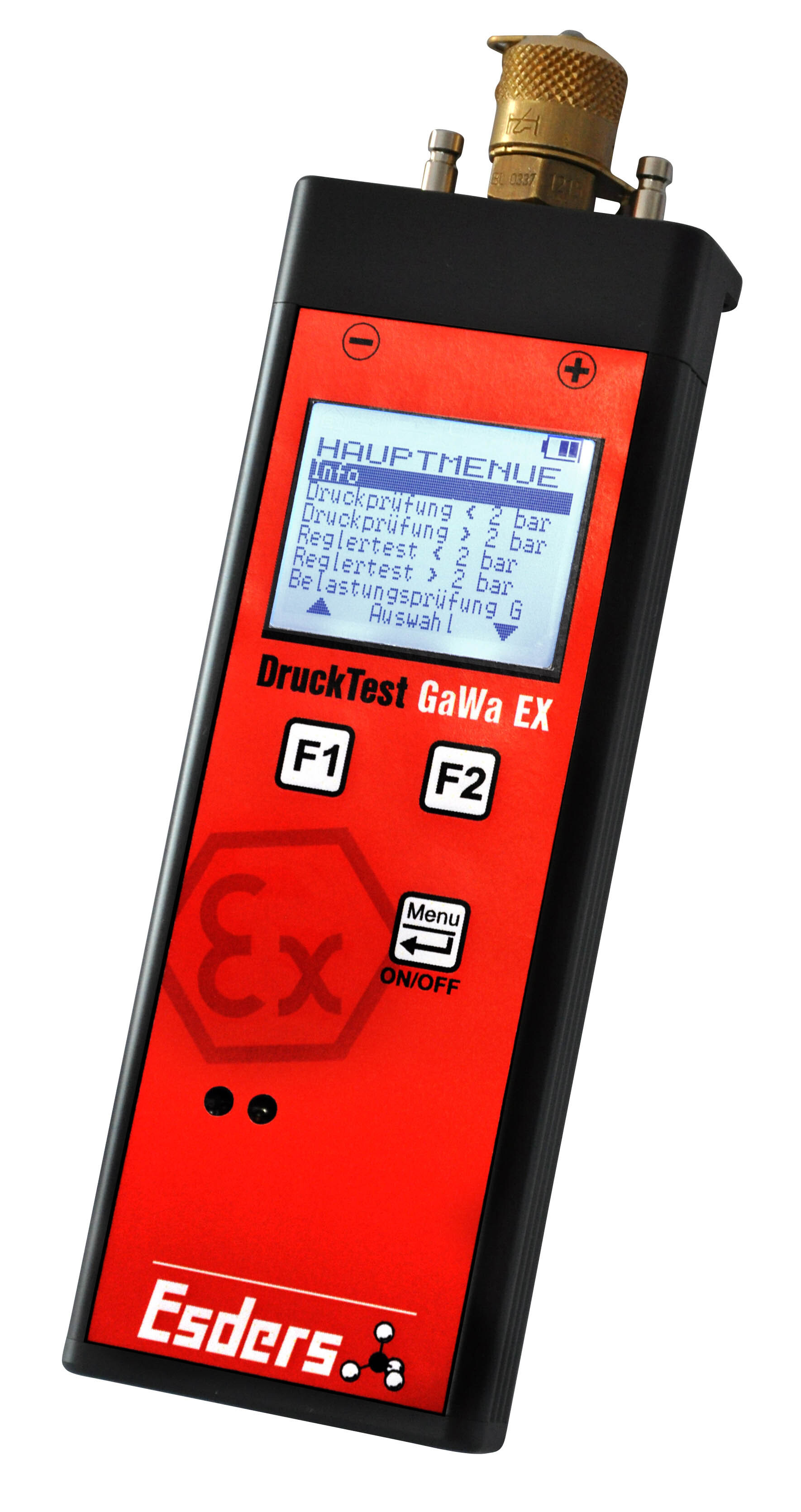

DruckTest GaWa EX HMG2 with alcaline battery range 0-2 bar and 0-25 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar dimensions: 191 x 58 x 34 mm weight: ca. 465 g Explosion-proof device marking: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX rechargeable battery 0-2bar and 0-50bar Robust, precise digital manometer in aluminium housing. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end pressure as well as pressure drop. Measuring range: 0 to 200 mbar with resolution 0.1 mbar 200 to 2,000 mbar with resolution 1 mbar 0 to 50 bar at resolution 5 mbar and accuracy 0.5% Dimensions: 191 x 58 x 34 mm Weight: approx. 465 g Explosion-proof instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX alcaline battery 0-2bar and 0-100bar Robust, precise digital manometer in aluminium housing. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end pressure as well as pressure drop. Measuring range: 0 to 200 mbar with resolution 0.1 mbar 200 to 2,000 mbar with resolution 1 mbar 0 to 100 bar with resolution 5 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 465 g Explosion-proof instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with alcaline battery range 0-2 bar and 0-10 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 465 g Explosion-proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX HMG2 with rechargeable battery range 0-2 bar and 0-25 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with rechargeable battery range 0-2 bar and 0-50 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 50 bar, resolution 10 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with rechargeable battery range 0-2 bar and 0-100 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 100 bar, resolution 5 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with rechargeable battery range 0-2 bar and 0-10 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

Test pump MPP 28-25 Pressure range 0 - 25 bar - practice-oriented test pumps with electronic control unit for the simplified performance of compression tests pursuant to EN 805 (W 400-2 in Germany) - automatic pressure stabilisation for preset test pressure which can be programmed in steps of 0.1 bar into the control unit - high delivery capacity rate of 28 l/min enable the generation of the required test pressure in less than 10 minutes, as required by the contraction procedure technical data: - connection value: 230 V / 400 V 50 Hz - power consumption: 2.200 VA - protection type: IP 54 - max. test pressure 25 bar - test pressure: 0 to 25 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 28 l/min - decompression: automatic / manual - GSM-remote monitoring: optional

Test pump MPP 68-25 Pressure range 0 - 25 bar - practice-oriented test pumps with electronic control unit for the simplified performance of compression tests pursuant to EN 805 (W 400-2 in Germany) - automatic pressure stabilisation for preset test pressure which can be programmed in steps of 0.1 bar into the control unit - high delivery capacity rate of 68 l/min enable the generation of the required test pressure in less than 10 minutes, as required by the contraction procedure technical data: - connection value: 400 V 50 Hz - power consumption: 4.000 VA - protection type: IP 54 - max. test pressure 25 bar - test pressure: 0 to 25 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 68 l/min - decompression: automatic / manual - GSM-remote monitoring: optional

Test pump MPP 68-35 Pressure range 0 - 35 bar - practice-oriented test pumps with electronic control unit for the simplified performance of compression tests pursuant to EN 805 (W 400-2 in Germany) - automatic pressure stabilisation for preset test pressure which can be programmed in steps of 0.1 bar into the control unit - high delivery capacity rate of 68 l/min enable the generation of the required test pressure in less than 10 minutes, as required by the contraction procedure technical data: - connection value: 400 V 50 Hz - power consumption: 5.000 VA - protection type: IP 54 - max. test pressure 35 bar - test pressure: 0 to 35 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 68 l/min - decompression: automatic / manual - GSM-remote monitoring: optional

Test pump MPP 11 Pressure range 0 - 25 bar full automatic testing pump for pressure build-up and pressure holding adjusted without pressure impulses technical data: - connection value: 230 V 50 Hz - power consumption: 1.850 VA - protection type: IP 54 - max. test pressure 25 bar - test pressure: 0 to 25 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 11 l/min. Maximum output approx. 300 l until automatic switch off, limited by temperature. - decompression: manual - Geka connection for water connection - quick coupling for pressure-side connection
