TONI DataLogTest - 300060
Description

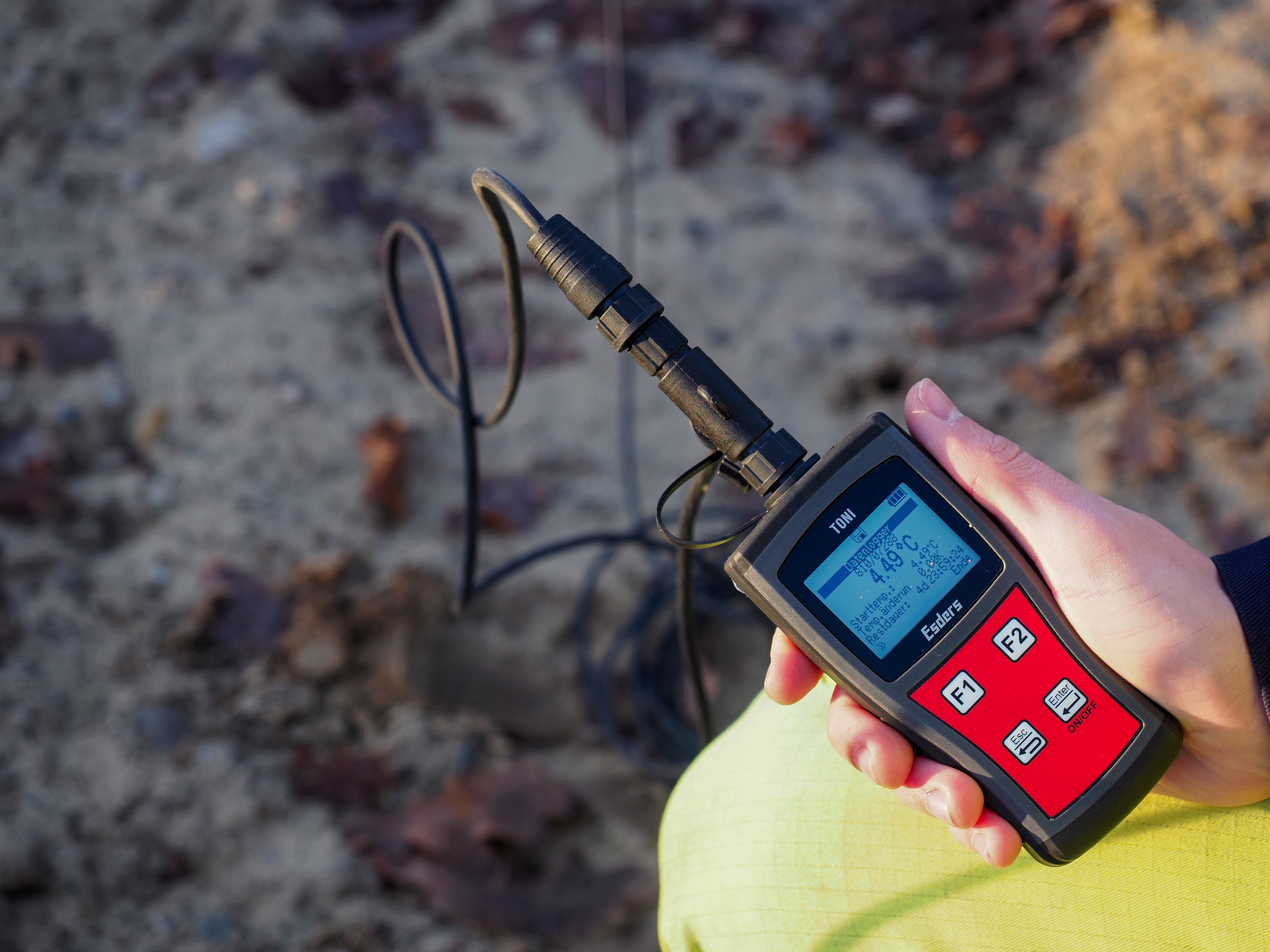

The TONI DataLogTest is a robust handheld measuring device for anyone who wants to accurately document pressure and temperature measurements using EDS2 sensors. Whether as a supplement to existing measurements or for independent testing tasks, with its standardised EDS2 interface, flexible logging functions and digital evaluation via our Esders Connect app, the TONI DataLogTest ensures greater efficiency on the construction site.
Measure, record and evaluate with the TONI DataLogTest
The TONI DataLogTest is the ideal data logger for up to two EDS2 pressure or temperature sensors. It is perfect for expanding existing tests with additional measuring points – or for independent long-term measurements with high accuracy.
In data logger mode, both channels are recorded synchronously – for maximum transparency without room for interpretation. In peak logger mode, the device reacts dynamically to changes in measured values: the sampling intervals are automatically shortened (up to 200 ms) as soon as the pressure changes significantly. This means that even pressure surges are reliably recorded without unnecessarily increasing the memory load and thus compromising long-term measurements.
The device is compact (weighing only 180 g), offers more than 120 hours of battery life, can be attached with a magnet and allows full documentation via the Esders Connect app. It is also ideal for remote or hard-to-reach measuring points – e.g. in combination with the smart memo or for evaluating complex EDS2 measuring sections.
Features of the TONI DataLogTest
- Logging of up to two EDS2 pressure or temperature sensors
- Data logger mode: synchronous measurement recording
- Peak logger mode: dynamic interval when changes occur (up to 200 ms)
- Ideal for long-term measurements and spontaneous incidents (e.g. pressure surges)
- > 120 hours of battery life, only 180 g in weight
- USB-C connection, IP64, magnets on the back
- Digital documentation via Esders Connect app
- Comparison and archiving of recurring tests
- Ideal in combination with smart memo
- Made in Germany – with fast service
Ideally combined with smart memo & EDS2 sensor technology
The TONI DataLogTest is the perfect addition to our smart memo and the versatile EDS2 sensor series. Whether temperature or pressure sensors – thanks to seamless integration, existing measurements can be easily expanded, long-term data can be recorded precisely, or additional measuring points can be conveniently documented.
Tip: If you already work with the smart memo, you can benefit from an expanded measurement strategy and optimal data overview with the DataLogTest – without having to change devices and with the support of EDS2-T or EDS2-P sensors.
Technical data
| Display | LCD graphic display with 128 x 64 pixels + special symbols, backlit |
| Dimensions (without sensor head) | 140 x 65 x 30 mm |
| Weight | Approx. 180 g |
| Ingress protection | IP64 |
| Temperature range | 0-60°C operating temperature |
| Operating time | > 120 hours with a fully charged battery, without lighting and at an ambient temperature of 20°C |
| Power supply | Long-lasting lithium-ion battery, rechargeable via USB-C |
| Cloud storage | Incl. after registration in the Esders Connect app |
| Alarm level | >95 dB (A) |
Sensors | Maximum number of EDS2 sensors that can be used: 2 |
| Alarm signals | Visual, audible and vibration |
