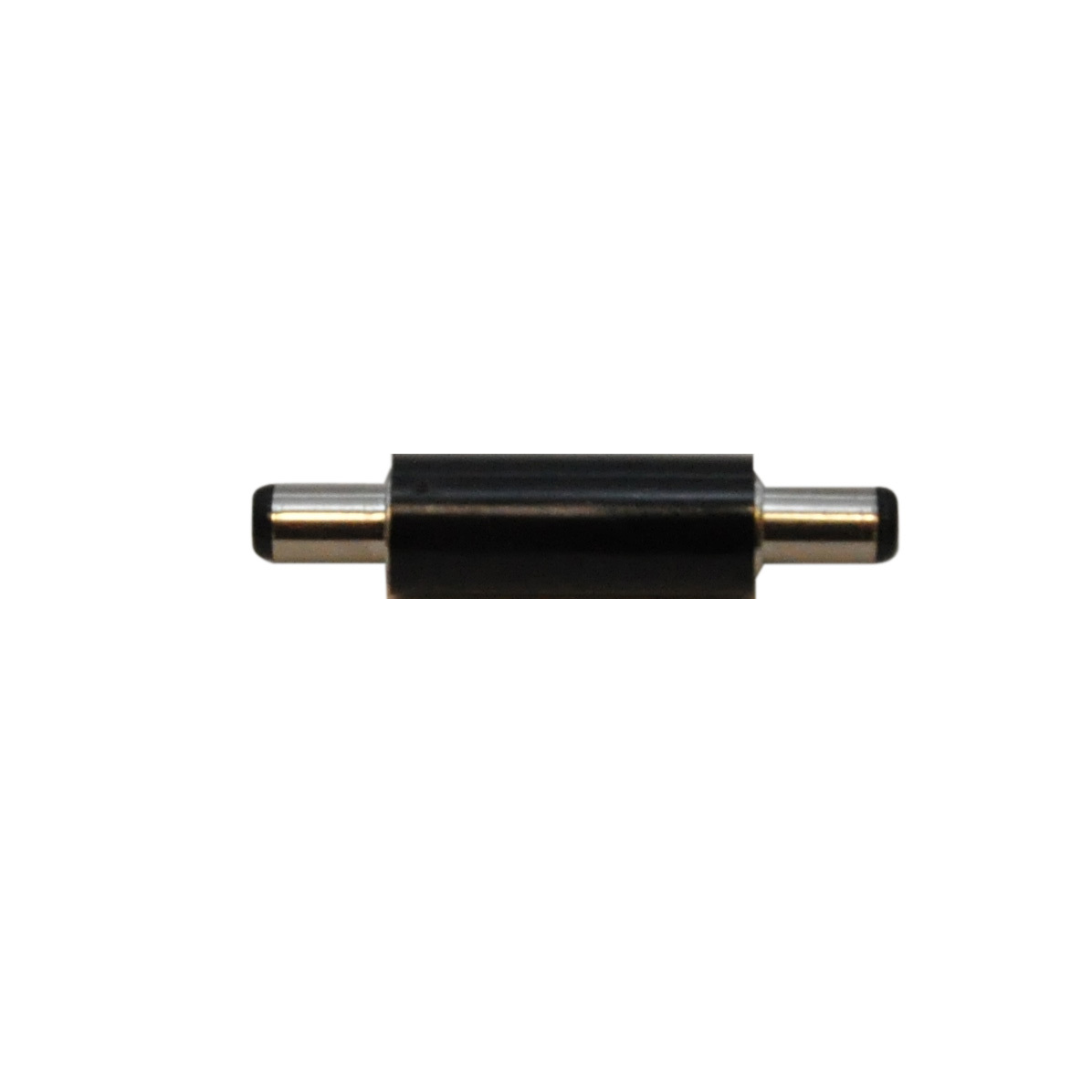

Connector for HMG charging stations – 262021

DruckTest GaWa – battery 2/25 bar measurement range 0 – 2 bar and 0 – 25 bar Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

DruckTest GaWa HMG2 – rechargeable battery 2/25 bar measurement range 0 – 2 bar and 0 – 25 bar Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

DruckTest GaWa – battery 2/10 bar measurement range 0 – 2 bar and 0 – 10 bar Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

Small, rugged aluminium handheld pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 455 g

DruckTest GaWa EX HMG2 with alcaline battery range 0-2 bar and 0-25 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar dimensions: 191 x 58 x 34 mm weight: ca. 465 g Explosion-proof device marking: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX rechargeable battery 0-2bar and 0-50bar Robust, precise digital manometer in aluminium housing. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end pressure as well as pressure drop. Measuring range: 0 to 200 mbar with resolution 0.1 mbar 200 to 2,000 mbar with resolution 1 mbar 0 to 50 bar at resolution 10 mbar and accuracy 0.5% Dimensions: 191 x 58 x 34 mm Weight: approx. 465 g Explosion-proof instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX alcaline battery 0-2bar and 0-100bar Robust, precise digital manometer in aluminium housing. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end pressure as well as pressure drop. Measuring range: 0 to 200 mbar with resolution 0.1 mbar 200 to 2,000 mbar with resolution 1 mbar 0 to 100 bar with resolution 20 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 465 g Explosion-proof instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with alcaline battery range 0-2 bar and 0-10 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Dimensions: 191 x 58 x 34 mm Weight: approx. 465 g Explosion-proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX HMG2 with rechargeable battery range 0-2 bar and 0-25 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 25 bar, resolution 5 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with rechargeable battery range 0-2 bar and 0-50 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 50 bar, resolution 10 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with rechargeable battery range 0-2 bar and 0-100 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 100 bar, resolution 20 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest GaWa EX with rechargeable battery range 0-2 bar and 0-10 bar Robust, accurate Gas leak detector in the aluminum housing with lighted display with menu technology for minimum and maximum pressure, or start and end pressure and pressure drop. Pressure range: 0 to 200 mbar, resolution 0.1 mbar 200 to 2000 mbar, resolution 1 mbar 0 to 10 bar, resolution 2 mbar Explosions proofed instrument: Sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

VibraGAS HMG2 – battery Gas leak detector Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. Measurement ranges: 0 to 10.000 ppm methane Operating time: > 20 hours without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 162 mm goose neck) Weight: approx. 400 g

VibraGAS LS – battery Gas leak detector with long swan neck Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane Operating time: > 20 hours without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 250 mm goose neck) Weight: approx. 410 g

VibraGAS refrigerant leak detector – battery Small, rugged aluminium handheld refrigerant leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. The measurement instrument is not useful for gas detection of refrigerant R1234yf. Operating time: > 20 hours without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 162 mm goose neck) Weight: approx. 400 g

VibraGAS – rechargeable battery Gas leak detector Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane Operating time: > 12 hours without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 162 mm goose neck) Weight: approx. 400 g

Gas leak detector with long goose neck Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane Operating time: > 12 hours without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 250 mm goose neck) Weight: approx. 410 g

VibraGAS EX HMG2 – battery Gas leak detector Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. measurement ranges: 0 to 10.000 ppm methane operating time: > 20 hours without backlight and 20°C dimensions: 149 x 58 x 34 mm (plus 172 mm goose neck) weight: approx. 450 g explosion proofed instrument: sign: II 2G Ex ib d IIB T3 Gb BVS 05 ATEX E 010 X temperature range: -20°C < Ta < +50°C

VibraGAS EX HMG2 – rechargeable battery Gas leak detector Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck and lighted display. Display of gas traces by audible, visual and vibrating alarm. measurement ranges: 0 to 10.000 ppm methane operating time: > 12 hours without backlight and 20°C dimensions: 149 x 58 x 34 mm (plus 172 mm goose neck) weight: approx. 450 g explosion-proof instrument: sign: II 2G Ex ib d IIB T3 Gb BVS 05 ATEX E 010 X temperature range: -20°C < Ta < +50°C

LeckOmiO – battery Gas leak detector, pressure test 0 to 2000 mbar Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck, lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Display of gas traces by concentration dependent, audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane 0 to 200 mbar, resolution 0,1 mbar 200 to 2.000 mbar, resolution 1 mbar Operating time: > 20 hours (gas detection) without backlight and 20°C > 100 hours (pressure measurement) without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 162 mm swan neck) Weight: approx. 400 g

LeckOmiO LS – battery Gas leak detector, pressure test 0 to 2000 mbar Small, rugged aluminium handheld gas leak detector with remote sensor on the long swan neck, lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Display of gas traces by concentration dependent, audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane 0 to 200 mbar, resolution 0,1 mbar 200 to 2.000 mbar, resolution 1 mbar Operating time: > 20 hours (gas detection) without backlight and 20°C > 100 hours (pressure measurement) without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 250 mm goose neck) Weight: approx. 410 g

LeckOmiO – rechargeable battery Gas leak detector, pressure test 0 to 2000 mbar Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck, lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Display of gas traces by concentration dependent, audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane 0 to 200 mbar, resolution 0,1 mbar 200 to 2.000 mbar, resolution 1 mbar Operating time: > 12 hours (gas detection) without backlight and 20°C > 60 hours (pressure measurement) without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 162 mm swan neck) Weight: approx. 400 g

LeckOmiO LS – rechargeable battery Gas leak detector, pressure test 0 to 2000 mbar Small, rugged aluminium handheld gas leak detector with remote sensor on the long goose neck, lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Display of gas traces by concentration dependent, audible, visual and vibrating alarm. Measurement range: 0 to 10.000 ppm methane 0 to 200 mbar, resolution 0,1 mbar 200 to 2.000 mbar, resolution 1 mbar Operating time: > 12 hours (gas detection) without backlight and 20°C > 60 hours (pressure measurement) without backlight and 20°C Dimensions: 149 x 58 x 34 mm (plus 250 mm goose neck) Weight: approx. 410 g

LeckOmiO EX – battery Gas leak detector pressure test 0 to 2000 mbar Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck, lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Display of gas traces by concentration dependent, audible, visual and vibrating alarm. measurement ranges: 0 to 10.000 ppm methane 0 to 200 mbar, resolution 0,1 mbar 200 to 2.000 mbar, resolution 1 mbar operating time: > 20 hours (gas detection) without backlight and 20°C > 100 hours (pressure measurement) without backlight and 20°C dimensions: 149 x 58 x 34 mm (plus 172 mm swan neck) weight: approx. 450 g explosion proofed instrument: sign: II 2G Ex ib d IIB T3 Gb BVS 05 ATEX E 010 X temperature range: -20°C < Ta < +50°C

LeckOmiO EX Gas detection device Differential pressure 0 to 1.600 mbar Robust and precise combination device with aluminium case. Gas sensor on gooseneck Vibration alarm with concentration-dependent vibration sequence. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and final pressure and pressure drop. Measure range: 0 to 10.000 ppm methane Measure range: 0 to 200 mbar, resolution 0,1 mbar lass 0,6 0 to 1.600 mbar, resolution 1 mbar Operating time > 12 hours in gas detection mode > 60 hours in pressure measuring mode if the battery is fully charged and the temperature is 20°C Dimensions: 322 x 58 x 34 mm (inkl. gooseneck) Weight: ca. 450 g

LeckOmiO EX HMG2 – rechargeable battery Gas leak detector pressure test 0 to 2000 mbar Small, rugged aluminium handheld gas leak detector with remote sensor on the swan neck, lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Display of gas traces by concentration dependent, audible, visual and vibrating alarm. measurement ranges: 0 to 10.000 ppm methane 0 to 200 mbar, resolution 0,1 mbar 200 to 2.000 mbar, resolution 1 mbar operating time: > 12 hours (gas detection) without backlight and 20°C > 60 hours (pressure measurement) without backlight and 20°C dimensions: 149 x 58 x 34 mm (plus 172 mm swan neck) weight: approx. 450 g explosion proofed instrument: sign: II 2G Ex ib d IIB T3 Gb BVS 05 ATEX E 010 X temperature range: -20°C < Ta < +50°C

LeckOmiO EX battery gas detection device Differential pressure 0 to 1,600 mbar Robust, precise combination instrument in an aluminium housing. Remote gas sensor on gooseneck. Vibration alarm with concentration-dependent vibration sequence. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end and final pressure and pressure drop. Measuring range: 0 to 10,000 ppm methane Measuring range: 0 to 200 mbar with resolution 0.1 mbar Class 0.6 0 to 1,600 mbar at resolution 1 mbar Operating time > 12 hrs in gas detection mode > 60 hrs in pressure measurement mode with fully charged battery and 20°C Dimensions: 322 x 58 x 34 mm (incl. gooseneck) Weight: approx. 450 g

Differential pressure 0 to 1,600 mbar Robust, precise combination device in aluminium housing. Remote gas sensor on gooseneck. Vibration alarm with concentration-dependent vibration sequence. Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end pressure as well as pressure drop. Measuring range: 0 to 10,000 ppm methane 0 to 400 mbar with resolution 0.1 mbar and 400 to 1,600 mbar with resolution 1 mbar Measuring range pressure: accuracy 0.2% of the respective final value Operating time > 12 hrs in gas detection mode > 60 hrs. in pressure measuring mode with fully charged battery and 20°C Dimensions: 322 x 58 x 34 mm (incl. gooseneck) Weight: approx. 450 g Explosion-proof measuring instrument: Marking: II 2G Ex ib d IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest 2000 HMG2 – battery 0 to 2000 mbar Small, rugged aluminium handheld differential pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement range: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar Operating time: > 100 hours without backlight and 20°C Dimensions: 165 x 58 x 34 mm Weight: approx. 400 g

Small, rugged aluminium handheld differential pressure measurement instrument with illuminated display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). Measurement ranges: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar Operating time: > 60 hours without backlight and 20°C Dimensions: 165 x 58 x 34 mm Weight: approx. 400 g

DruckTest 2000 EX – battery 0 to 2000 mbar Small, rugged aluminium handheld differential pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). measurement ranges: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar operating time: > 100 hours without backlight and 20°C dimensions: 165 x 58 x 34 mm weight: approx. 450 g explosion proofed instrument: sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X temperature range: -20°C < Ta < +50°C

DruckTest 2000 EX – rechargeable battery 0 to 2000 mbar Small, rugged aluminium handheld differential pressure measurement instrument with lighted display and menu technology (minimum and maximum pressure, start and end pressure, pressure drop). measurement ranges: 0 to 200 mbar, resolution 0,1 mbar 200 to 2000 mbar, resolution 1 mbar operating time: > 60 hours without backlight and 20°C dimensions: 165 x 58 x 34 mm weight: approx. 450 g explosion proofed instrument: sign: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X temperature range: -20°C < Ta < +50°C

DruckTest 2000 EX rechargeable battery NL Differential pressure measuring device 1,600 mbar Robust, precise digital manometer in aluminium housing Illuminated graphic display with menu technology for calling up minimum and maximum pressure or start and end pressure as well as pressure drop. Measuring range: 0 to 400 mbar with resolution 0.1 mbar and 400 to 1,600 mbar with resolution 1 mbar Dimensions: 165 x 58 x 34 mm Weight: approx. 450 g Explosion-proof measuring device: Marking: II 2G Ex ib IIB T3 Gb BVS 05 ATEX E 010 X Temperature range: -20°C <= TA <= +50°C

DruckTest 2000 Battery NL 1,6 bar Extremely rugged hand-held measurement device in aluminium casing. Digital pressure gauge for precise pressure measurements in two measurement ranges. Pressure range: 0 to 400 mbar, Resolution 0.1 mbar 0,2% FS 400 to 1600 mbar, Resolution 1 mbar 0,2% FS Dimensions: 165 x 58 x 34 mm Weight: ca. 400 g Easy operation through menu technology and function keys. The operational concept offers numerous advantages by displaying minimum and maximum values, as well as measuring times and starting and final pressures in pressure tests.
