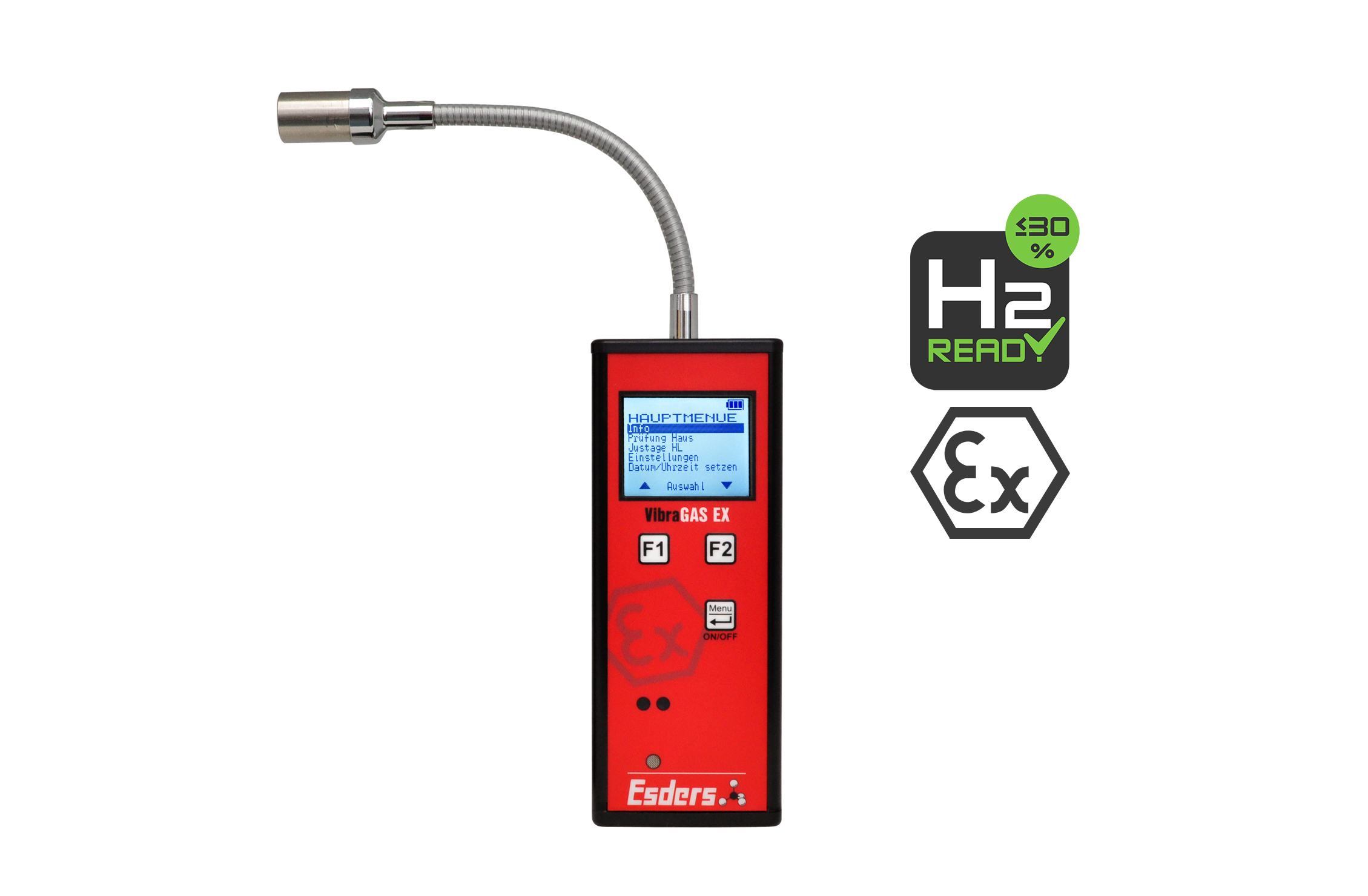

VibraGas / VibraGas EX portable gas detector - 271220

Variant:

Robust, precise gas detector in an aluminium housing with a separate sensor on a gooseneck. Detects traces of gas and alerts you with audible, visual and vibrating alarms (which can be switched off). Measuring range: 0 to 10,000 ppm methane Operating time: > 20 hours in gas detection mode (without backlight and at 20°C) Dimensions: 322 x 58 x 34 mm (including gooseneck) Weight: approx. 450 g Explosion-proof measuring device: - marking: II 2G Ex ib d IIB T3 Gb BVS 05 ATEX E 010 X - temperature range: -20°C <= TA <= +50°C

Quantity

VibraGas / VibraGas EX - a portable device designed for leak detection and repair (LDAR)

The VibraGas / VibraGas EX device enables you to quickly and accurately detect even the smallest leaks in gas installations. Also available as a non-explosion-proof device. In addition to the visual and audible signal it provides also a vibration alarm. Without worrying inhabitants the user is alerted to the slightest traces of gas. The vibration increases with the gas concentration. The display does not need to be observed for the location of the leak.

The flexible goose neck with remote sensor, offers the possibility for an exact examination of pipe sections, fittings and valves. Even the smallest concentrations of escaping gas are detected and displayed.

The use of VibraGAS offers numerous advantages over the use of leak spray. Hemp-sealed connections swell when using leak sprays often they are briefly "tight" again. On hard to reachline parts small bubbles can be very difficult to detect. Here, the use of a mirror for detecting the rear bubbles is often necessary. The VibraGAS works "dirt-free" and leaves no traces of wallpaper, walls or floor materials, such as leakspray.

Features of the VibraGas / VibraGas EX portable gas detector

Robust hand-held measuring device in an ergonomic aluminum housing
Powerful gas detector with vibration alarm and digital display reading for gas leak detection
High contrast LCD display with backlight for an optimal display of all measurements
Easy replacement of batteries with innovative battery Management
Simple and easy to use thanks to intuitive menu navigation
No need to watch the display during localisation
Zero point can be set at the push of a button
Practical accessories for all applications

Technical data

Display	LCD graphic display with 128 x 64 pixels + special characters, with backlight
Power supply	pcs 1.5V Alkaline AA Batteries or EX NiMH battery pack
Operating time	with alkaline manganese batteries > 100 hours at pressure measurement (without lighting) > 20 hours at Gas detection (without lighting)
Measuring range	0 to 10.000 ppm Methane; resolution 1, 10, 50, 100 and 1.000 ppm 0 to 200 mbar (hPa) and 200 to 2000 mbar; resolution 0,1 mbar and 1 mbar
Measurement precision	± 0,5 % of end value at 200 mbar and 20°C, ±0,5 % of end value at 2.000 mbar and 20°C
Operating Temperature	-20 °C to +50 °C
Dimensions	149–165 x 58 x 34 mm without gooseneck (gooseneck 173 mm)
Weight	approx. 450 g with batteries
Test number	BVS 05 ATEX E 010 X
Identification code	II 2G Ex ib d IIB T 3 Gb
