TONI CombiTest CH4 - 300020
Description
The TONI CombiTest CH4 combines precise methane leak detection with digital pressure testing in a compact handheld measuring device. It is ideal for work on gas installations where both tightness and gas leakage must be checked. With a remote sensor, vibration alarm and intuitive operation, the device reliably supports technicians in standard-compliant testing and documentation – all in one device, on site and without changing equipment.

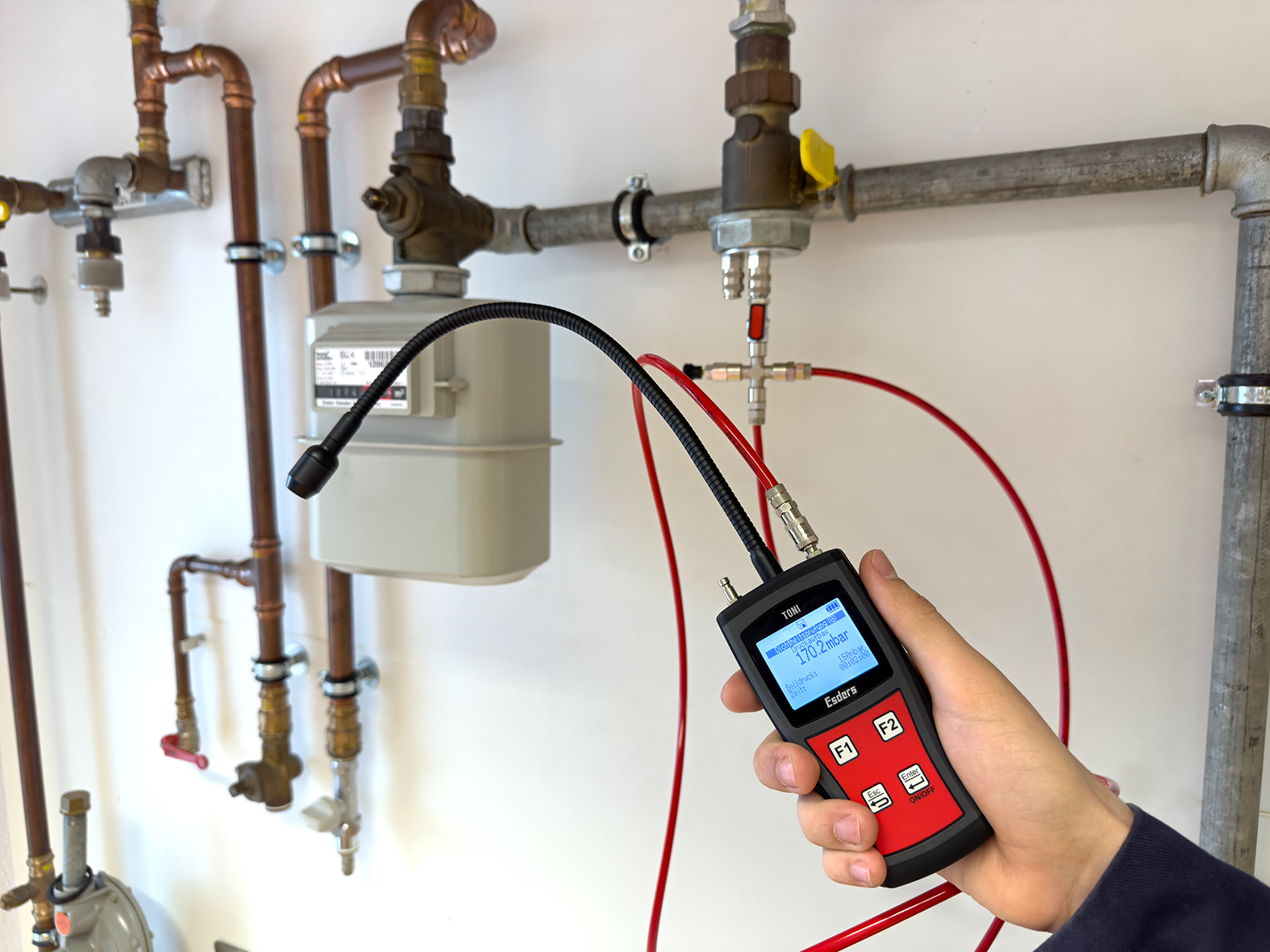

Leak detection and pressure testing - TONI CombiTest CH4
The TONI CombiTest CH4 combines two key functions for everyday use in HVAC installations: precise leak detection in indoor gas installations and TRGI-compliant pressure testing after repairs.
User-guided pressure testing procedures in accordance with TRGI G600 regulations ensure standardised testing by all installers and customer service technicians. If necessary, the specifications can be flexibly adapted – for example, for long-term measurements or special operating conditions.
This makes the TONI CombiTest CH4 a versatile tool for specialised companies and utility providers who value efficiency, safety and easy documentation via Esders Connect.
Features of TONI CombiTest CH4
- Combination of GasTest CH4 and PressureTest LP
- A single device for pressure testing and leak detection in indoor gas installations
- Guided measurement sequences for load and leak testing in accordance with TRGI G600
- High sensor accuracy for leak detection and pressure measurement
- Archiving of test results with Esders Connect
- Automatic sending of test reports via app
- Simple construction documentation
- Long battery life of > 20 [e1] [e2] hours for gas leak detection and over 140 hours for pressure measurement
- Ergonomic, dust- and splash-proof housing with IP64 protection class
- Durable, non-slip TPU material on the impact edges
Technische Daten
| Display | LCD graphic display with 128 x 64 pixels + special characters, backlit |
| Dimensions | 472 x 61 x 31 mm |
| Weight | 280 g |
| Protection | IP 64 |
| Temperature range | Operating temperature: -20° to +50° C Storage temperature: -20° to +60° C |
| Operating time with backlighting | Leak detection: 20 hours Pressure measurement: 120 hours |
| Operating time without backlighting | Leak detection: 31 hours Pressure measurement: 140 hours |
| Power supply | Long-lasting lithium-ion battery, rechargeable via USB-C |
| Cloud storage | incl. after Esders Connect registration |
| Alarm level | >95 dB (A) |
| Measuring range | CH4: 0 - 10.000 ppm CH4 Pressure: 0 - 2,000 mbar non-aggressive gases, 0.1 mbar resolution |
| Alarm | visual, audible and vibration |
| Additional info | Response time t90 CH4: 4.5 seconds |
