Device options Option AGFW FW 602
Option AGFW FW 602 - 222627
Option AGFW FW 602
Menu-guided pressure test procedures for carrying out pressure tests on district heating pipes according to AGFW FW 602 (Germany): - Differential pressure measurement method (air) - Pressure measurement method (air) - Simultaneous pressure measurement (air) - Water pressure test
Electronic pressure test case for pressure tests with connection possibility of up to 5 external pressure or temperature sensors. - the test procedures are menu-guided and can be carried out with simple Data entry dialog - a freely programmable pressure test is included - optional test sequences for gas and water tightness tests e.g. according to DVGW, ÖVGW, EWE, Avacon, WEVG. - a subsequent addition of test sequences is possible easily - large, illuminated display, even in direct sunlight easy to read - Data entry and signature via touch display and foil keys - Stylus for the touch display included - Data memory for hundreds of measurements, depending on test sequence - Communication via Bluetooth for update, data transmission, printer - LTE / GPS module (optional) - robust case (IP 67) - Operating time approx. 200 hours, extension with power supply possible from outside Dimensions: 220 x 90 x 168 mm Weight: approx. 1450 g
Option AGFW FW 602
In times of climate crises, energy shortages and exploding energy costs, district heating is becoming an increasingly important supplier of heat.

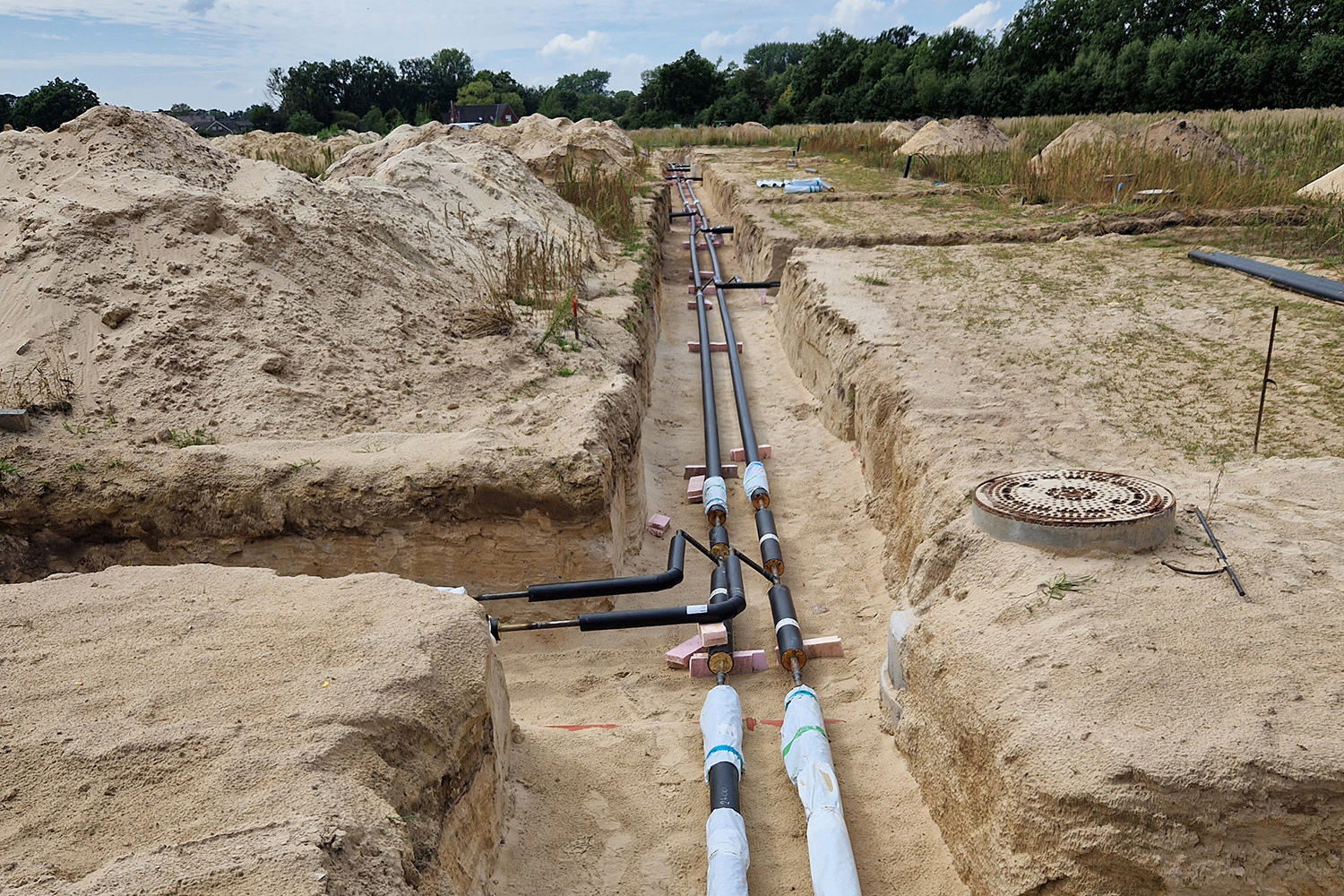

District heating refers to the direct supply of end customers, e.g. the supply of heat to single-family houses via a district heating pipeline. To ensure long-term, safe and economic operation, newly laid district heating networks must be inspected.
Further detailed information on the topic of district heating can be found here.
The AGFW FW 602 option in the smart memo includes 4 separate menu items with which you can carry out pressure tests on newly laid district heating pipelines in accordance with worksheet FW 602:
- Differential pressure measuring method (air)
- Pressure measurement method (air)
- Simultaneous pressure measurement (air)
- Water pressure test
