Accessories Other Special-Pumpoil for MPP 11/28/30/68

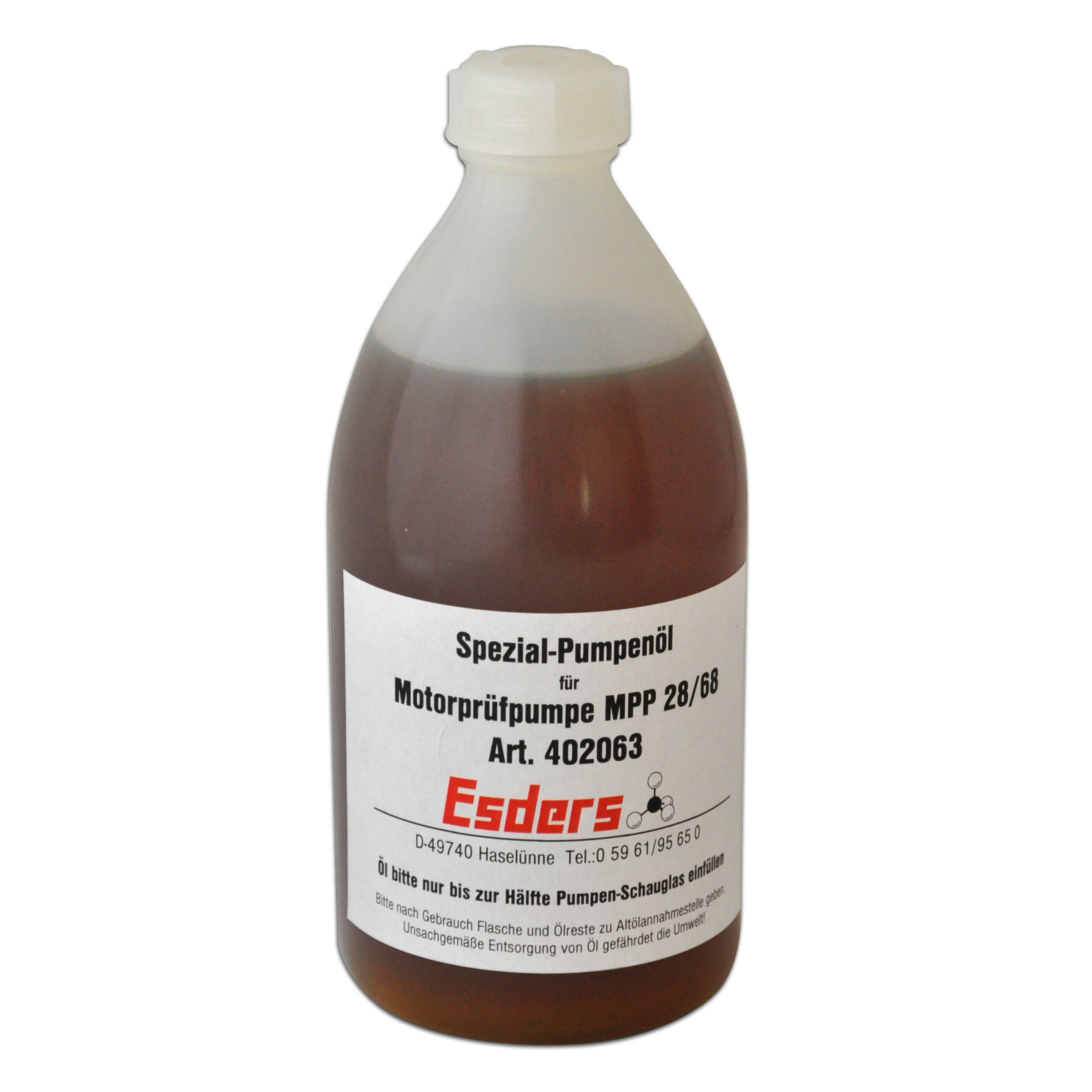

Special-Pumpoil for MPP 11/28/30/68 - 402063
Special-Pumpoil for MPP 11/28/30/68
MPP 11 requires 0.3 litres
MPP 28 requires 0.65 litres
MPP 30 needs 0.65 litres
MPP 68 needs 1.5 litres
According to §8 of the Waste Oil Ordinance, we are obliged to take back waste oil.
You can send back the respective container to our head office in Haselünne.
Article affiliation:
Test pump MPP 70-35
Fully automatic test pump for carrying out water pressure tests,
e.g. according to DVGW W 400-2, ÖVGW W 101, EN 805
- max. outlet pressure 35 bar
- delivery volume 70 l/min.
- Voltage 400 volt - 50 Hz
- Power consumption 5.5 kW
- Test pressure adjustable in 0.1 bar steps
- Frequency converter and speed control for adapted pressure build-up
and pressure maintenance without pressure surges
- freely adjustable, constant speed via "manual operation
- check valve for locking the pressure line
- Storz connection and quick couplings for water inlet and water outlet
- optionally with flow measurement (necessary for air volume determination in smart memo)
- optional with disinfection procedure for MPP
- optional with wheel set
Suitable for pressure build-up in large pipeline volumes. For small pipeline volumes with V < 1m^3, the MPP 70-35 is only suitable to a limited extent, as the test pressure may be "overrun".
Test pump MPP 30-30
Fully automatic test pump for simplified execution of water pressure tests according to DVGW W 400-2, ÖVGW W 101, EN 805
- max. outlet pressure 30 bar
- delivery volume 30 liter/min.
- power supply 230 Volt / 400 Volt - 50 Hz
- power consumption 2,2 kW
- test pressure adjustable in 0,1 bar steps
- frequency converter and speed control for adapted pressure build-up and pressure maintenance without pressure surges
- freely adjustable, constant speed via "manual operation"
- non-return valve for blocking of pressure line
- Storz coupling and quick-coupling for water inlet and outlet
- optional with volume flow measurement (necessary for air volume determination in smart memo)
- optional disinfection procedure for pump
- optional with wheel set
Test pump MPP 28-25
Test pump MPP 28-25 Pressure range 0 - 25 bar
- practice-oriented test pumps with electronic control unit
for the simplified performance of compression tests pursuant
to EN 805 (W 400-2 in Germany)
- automatic pressure stabilisation for preset test pressure which
can be programmed in steps of 0.1 bar into the control unit
- high delivery capacity rate of 28 l/min enable the generation
of the required test pressure in less than 10 minutes, as required
by the contraction procedure
technical data:
- connection value: 230 V / 400 V 50 Hz
- power consumption: 2.200 VA
- protection type: IP 54
- max. test pressure 25 bar
- test pressure: 0 to 25 bar in steps of 0.1 bar
- safety: safety valve
- delivery volume: 28 l/min
- decompression: automatic / manual
- GSM-remote monitoring: optional
Test pump MPP 68-25
Test pump MPP 68-25 Pressure range 0 - 25 bar
- practice-oriented test pumps with electronic control unit
for the simplified performance of compression tests pursuant
to EN 805 (W 400-2 in Germany)
- automatic pressure stabilisation for preset test pressure which
can be programmed in steps of 0.1 bar into the control unit
- high delivery capacity rate of 68 l/min enable the generation
of the required test pressure in less than 10 minutes, as required
by the contraction procedure
technical data:
- connection value: 400 V 50 Hz
- power consumption: 4.000 VA
- protection type: IP 54
- max. test pressure 25 bar
- test pressure: 0 to 25 bar in steps of 0.1 bar
- safety: safety valve
- delivery volume: 68 l/min
- decompression: automatic / manual
- GSM-remote monitoring: optional
Test pump MPP 68-35
Test pump MPP 68-35 Pressure range 0 - 35 bar
- practice-oriented test pumps with electronic control unit
for the simplified performance of compression tests pursuant
to EN 805 (W 400-2 in Germany)
- automatic pressure stabilisation for preset test pressure which
can be programmed in steps of 0.1 bar into the control unit
- high delivery capacity rate of 68 l/min enable the generation
of the required test pressure in less than 10 minutes, as required
by the contraction procedure
technical data:
- connection value: 400 V 50 Hz
- power consumption: 5.000 VA
- protection type: IP 54
- max. test pressure 35 bar
- test pressure: 0 to 35 bar in steps of 0.1 bar
- safety: safety valve
- delivery volume: 68 l/min
- decompression: automatic / manual
- GSM-remote monitoring: optional
Test pump MPP 11
Test pump MPP 11 Pressure range 0 - 25 bar
full automatic testing pump for pressure build-up and pressure holding adjusted
without pressure impulses
technical data:
- connection value: 230 V 50 Hz
- power consumption: 1.850 VA
- protection type: IP 54
- max. test pressure 25 bar
- test pressure: 0 to 25 bar in steps of 0.1 bar
- safety: safety valve
- delivery volume: 11 l/min. Maximum output approx. 300 l
until automatic switch off, limited by temperature.
- decompression: manual
- Geka connection for water connection
- quick coupling for pressure-side connection
