Test trailer Pressure Test Trailer

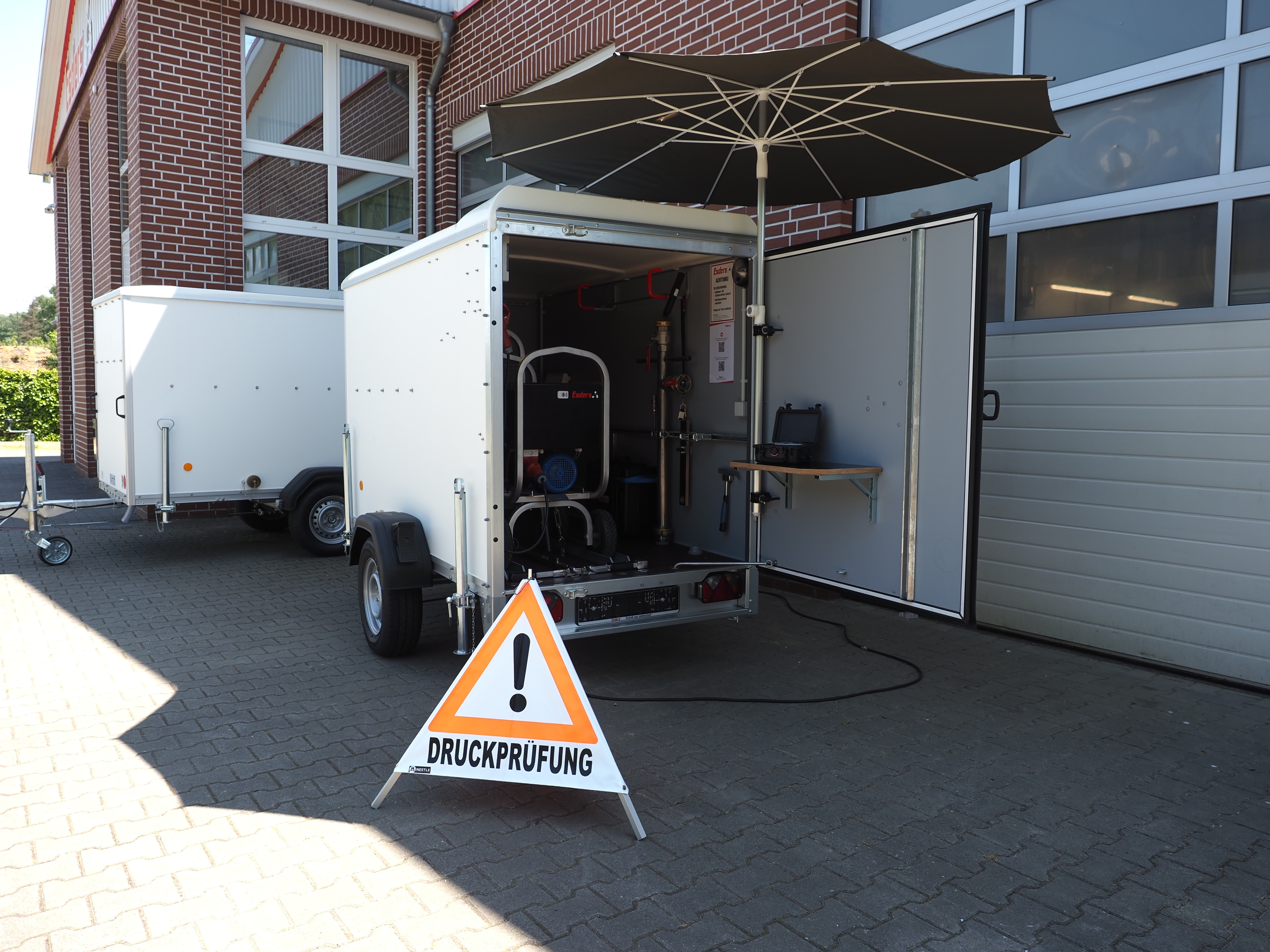

Setting up the trailer for pressure testing

MPP 30-30 and smart memo in use

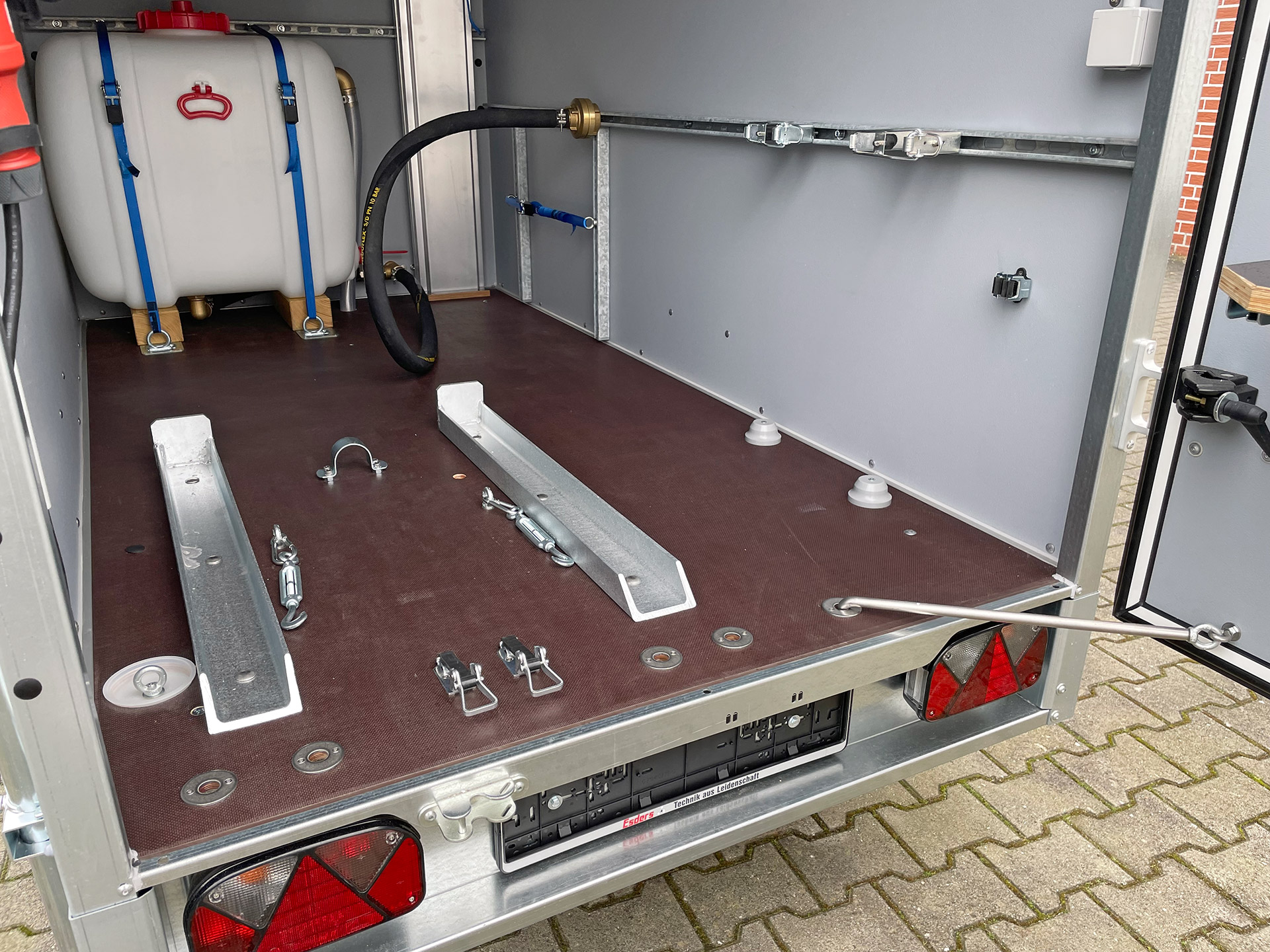

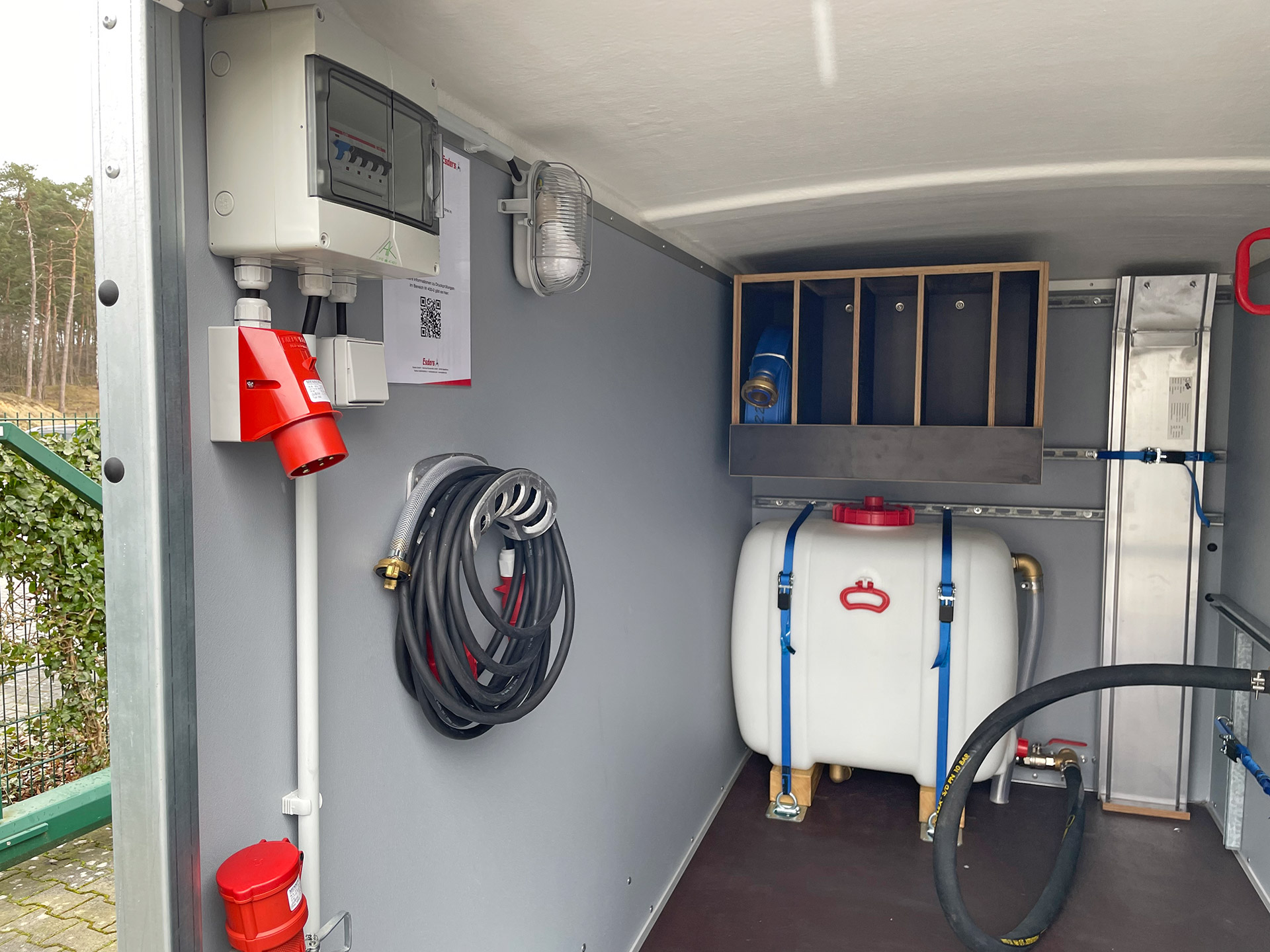

The inside of our pressure test trailer

Pressure Test Trailer - 401011

Variant:

Pressure test trailer - braked - Closed boxes trailers 2515 x 1300 x 1520 mm permissible total weight 1350 kg Wing door with rear revolving rods Interior design with: - AC socket with distribution - lighting with button - connection for test pump (MPP) - water tank with supply hose, connection for MPP and expiration - separate water supply for the water tank and test pump - drain for water tank and test pump - connection for umbrella at wing door - aluminium ramps for test pump - table for paperwork or storage measuring instruments

Quantity

Article affiliation:

Test pump MPP 70-35

Test pump MPP 70-35

Fully automatic test pump for carrying out water pressure tests, e.g. according to DVGW W 400-2, ÖVGW W 101, EN 805 - max. outlet pressure 35 bar - delivery volume 70 l/min. - Voltage 400 volt - 50 Hz - Power consumption 5.5 kW - Test pressure adjustable in 0.1 bar steps - Frequency converter and speed control for adapted pressure build-up and pressure maintenance without pressure surges - freely adjustable, constant speed via "manual operation - check valve for locking the pressure line - Storz connection and quick couplings for water inlet and water outlet - optionally with flow measurement (necessary for air volume determination in smart memo) - optional with disinfection procedure for MPP - optional with wheel set Suitable for pressure build-up in large pipeline volumes. For small pipeline volumes with V < 1m^3, the MPP 70-35 is only suitable to a limited extent, as the test pressure may be "overrun".

Test pump MPP 30-30

Test pump MPP 30-30

Fully automatic test pump for simplified execution of water pressure tests according to DVGW W 400-2, ÖVGW W 101, EN 805 - max. outlet pressure 30 bar - delivery volume 30 liter/min. - power supply 230 Volt / 400 Volt - 50 Hz - power consumption 2,2 kW - test pressure adjustable in 0,1 bar steps - frequency converter and speed control for adapted pressure build-up and pressure maintenance without pressure surges - freely adjustable, constant speed via "manual operation" - non-return valve for blocking of pressure line - Storz coupling and quick-coupling for water inlet and outlet - optional with volume flow measurement (necessary for air volume determination in smart memo) - optional disinfection procedure for pump - optional with wheel set

Test pump MPP 28-25

Test pump MPP 28-25

Test pump MPP 28-25 Pressure range 0 - 25 bar - practice-oriented test pumps with electronic control unit for the simplified performance of compression tests pursuant to EN 805 (W 400-2 in Germany) - automatic pressure stabilisation for preset test pressure which can be programmed in steps of 0.1 bar into the control unit - high delivery capacity rate of 28 l/min enable the generation of the required test pressure in less than 10 minutes, as required by the contraction procedure technical data: - connection value: 230 V / 400 V 50 Hz - power consumption: 2.200 VA - protection type: IP 54 - max. test pressure 25 bar - test pressure: 0 to 25 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 28 l/min - decompression: automatic / manual - GSM-remote monitoring: optional

Test pump MPP 68-25

Test pump MPP 68-25

Test pump MPP 68-25 Pressure range 0 - 25 bar - practice-oriented test pumps with electronic control unit for the simplified performance of compression tests pursuant to EN 805 (W 400-2 in Germany) - automatic pressure stabilisation for preset test pressure which can be programmed in steps of 0.1 bar into the control unit - high delivery capacity rate of 68 l/min enable the generation of the required test pressure in less than 10 minutes, as required by the contraction procedure technical data: - connection value: 400 V 50 Hz - power consumption: 4.000 VA - protection type: IP 54 - max. test pressure 25 bar - test pressure: 0 to 25 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 68 l/min - decompression: automatic / manual - GSM-remote monitoring: optional

Test pump MPP 68-35

Test pump MPP 68-35

Test pump MPP 68-35 Pressure range 0 - 35 bar - practice-oriented test pumps with electronic control unit for the simplified performance of compression tests pursuant to EN 805 (W 400-2 in Germany) - automatic pressure stabilisation for preset test pressure which can be programmed in steps of 0.1 bar into the control unit - high delivery capacity rate of 68 l/min enable the generation of the required test pressure in less than 10 minutes, as required by the contraction procedure technical data: - connection value: 400 V 50 Hz - power consumption: 5.000 VA - protection type: IP 54 - max. test pressure 35 bar - test pressure: 0 to 35 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 68 l/min - decompression: automatic / manual - GSM-remote monitoring: optional

Test pump MPP 11

Test pump MPP 11

Test pump MPP 11 Pressure range 0 - 25 bar full automatic testing pump for pressure build-up and pressure holding adjusted without pressure impulses technical data: - connection value: 230 V 50 Hz - power consumption: 1.850 VA - protection type: IP 54 - max. test pressure 25 bar - test pressure: 0 to 25 bar in steps of 0.1 bar - safety: safety valve - delivery volume: 11 l/min. Maximum output approx. 300 l until automatic switch off, limited by temperature. - decompression: manual - Geka connection for water connection - quick coupling for pressure-side connection

Description

Pressure tests are essential for the acceptance of pipelines. Extensive accessories are required for carrying out the tests, which must fulfil the requirements for use in the drinking water sector. The time required and success of a pressure test also often depends on the quality of the equipment used. People often discover at the construction site that a hose or standpipe is missing, because it is being used by a colleague for other purposes. Using a lockable pressure testing trailer is a reliable solution here. All necessary parts have their designated space and enable work to be carried out quickly and efficiently. The Esders System is designed for use with the MPP powered test pump. Operation usually takes place with the MPP mounted in the trailer. If necessary due to the conditions at the construction site, the MPP can be unloaded quickly and used externally, however.

All necessary connections are made through the hole in the base, thus enabling operation with the trailer locked. In conjunction with the optional GSM remote monitoring system for the MPP, unsupervised long-term operation is possible, including over night.

Pressure test with smart memo

Pressure test trailer

Features

Use with the powered test pump installed in the rail system
Internal distribution for water supply and drainage, as well as power supply and lighting
Shelving and racks for hoses, cables and pressure test case
Mounting rails and brackets for testing standpipe, filling standpipe, ramps, valve keys and protective screen
Water container for buffering the required water
Folding work table for measuring device or for documentation
Lockable trailer with hole in the base for feeding through hoses to the outside (for long-term measurements)

Downloads

Brochure Pressure testing trailer
