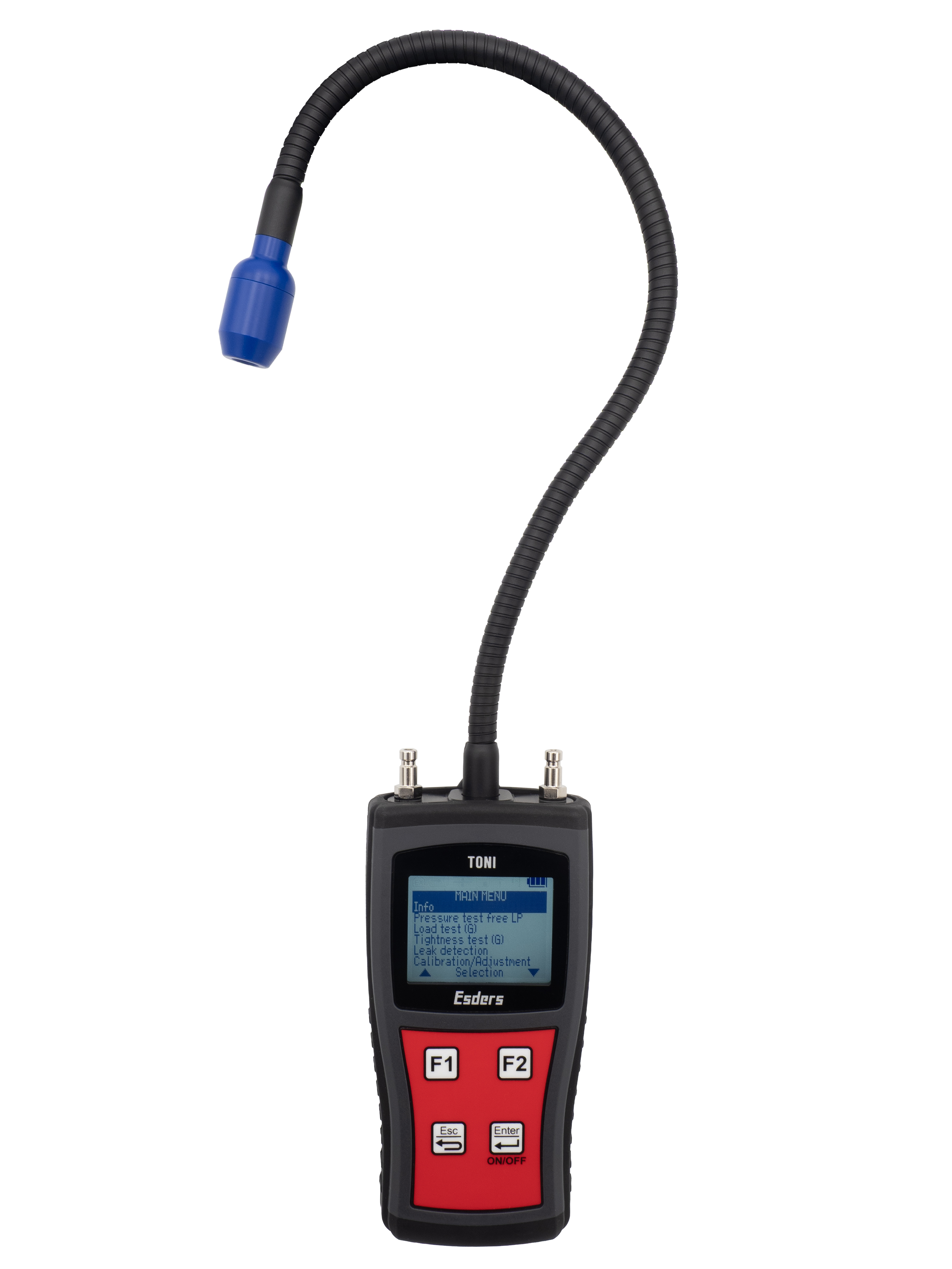

TONI CombiTest R - 300021

Variant:

Robust, precise digital pressure gauge for differential pressure measurement. Illuminated graphic display with menu navigation for accessing minimum and maximum pressure, start and end pressure, as well as pressure drop. Can also be used as a refrigerant gas detector with a remote sensor in the gooseneck. Refrigerant concentration is displayed on the screen. Leakage alarm thanks to a switchable audible and visual alarm as well as a quiet vibration alarm. Common refrigerants are detectable according to EN 14624, including R290, R32, R134a, and R1234yf. Operating time: up to 140 hours as a digital manometer with a fully charged battery, without illumination, and at an ambient temperature of 20°C up to 17 hours in detection mode with a fully charged battery, without illumination, and at an ambient temperature of 20°C. Gooseneck length: 34.5 cm Housing dimensions: 13 cm x 6.5 cm x 3 cm Device weight: approx. 270 g

Quantity

Description

The TONI CombiTest R is a 2-in-1 measuring device for anyone who wants to test heat pump systems safely and in compliance with regulations. It combines leak detection in refrigerant circuits with TRGI-compliant pressure testing on gas installations up to 2 bar – precise, digital and with easy documentation. The device can also be used for pressure measurements in the gas sector in accordance with TRGI regulations.

TONI CombiTest R: two applications in one device

The TONI CombiTest R can be used to reliably detect leaks in heat pump systems. The device can be used to detect all common refrigerants such as R290, R32, R134a or R1234yf – tested in accordance with EN 14624. In addition, pressure tests can be carried out on pipes with a maximum pressure of 2 bar.

The differential pressure measuring system allows pressure differences relative to the ambient pressure or between two pipes to be recorded accurately – whether during commissioning, maintenance or fault testing. Long-term measurements can also be set up quickly.

Measurement results are automatically documented in our Esders Connect app and can be digitally evaluated, compared or sent as a test report by email. The TONI CombiTest R not only saves time, but also increases process reliability on the construction site.

Features of the TONI CombiTest R

Combined leak detection and pressure testing device
Detection of refrigerants such as R290, R32, R134a, R1234yf
Pressure measurement up to 2 bar, differential pressure possible
Documentation via Esders Connect app
Reports with history, min/max/start/end pressure
USB-C charging port & integrated magnets for mounting
Protection class IP64, robust & compact
Practical accessories for use in the plumbing, heating and air conditioning sectors
Made in Germany – with fast service

Technical data

Display	LCD graphic display with 128 x 64 pixels + special symbols, backlit
Dimensions (without sensor head)	130 x 65 x 30 mm Length of gooseneck: 345 mm
Weight	Approx. 270 g
Ingress protection	IP64
Temperature range	0-60°C operating temperature
Operating time	Up to 140 hours as a digital pressure gauge with a fully charged battery, without lighting and at an ambient temperature of 20°C. Up to 17 hours in the leak detection mode with a fully charged battery, without lighting and at an ambient temperature of 20°C.
Power supply	Long-lasting lithium-ion battery, rechargeable via USB-C
Cloud storage	Incl. after registration in the Esders Connect app
Alarm level	>95 dB (A)
Alarm signals	Visual, audible and vibration
Detection	Standard refrigerants are detectable in accordance with EN 14624, including R290, R32, R134a and R1234yf
