TONI GasTest R - 300011

Variant:

Refrigerant gas detector with a remote sensor in the gooseneck. Refrigerant concentration is displayed on the screen. Leakage alarm thanks to a switchable audible and visual alarm as well as a quiet vibration alarm. Common refrigerants are detectable according to EN 14624, including R290, R32, R134a, and R1234yf. Operating time: up to 17 hours in detection mode with a fully charged battery, without illumination, and at an ambient temperature of 20°C. Gooseneck length: 34.5 cm Housing dimensions: 13 cm x 6.5 cm x 3 cm Device weight: approx. 270 g

Quantity

Description

The TONI GasTest R is a smart handheld measuring device for rapid leak detection in refrigerant systems – ideal for use on heat pumps with R290, R32, R134a or R1234yf. The long gooseneck reaches even hard-to-access areas. This makes it particularly suitable for service applications and even for monitoring the transport of heat pumps.

Leak in the refrigerant? The TONI GasTest R will find it!

The TONI GasTest R was specially developed for the detection of all common refrigerants in accordance with EN 14624. With its powerful diffusion sensor, it reliably locates even the smallest leaks – whether during commissioning, maintenance or the transport of heat pumps.

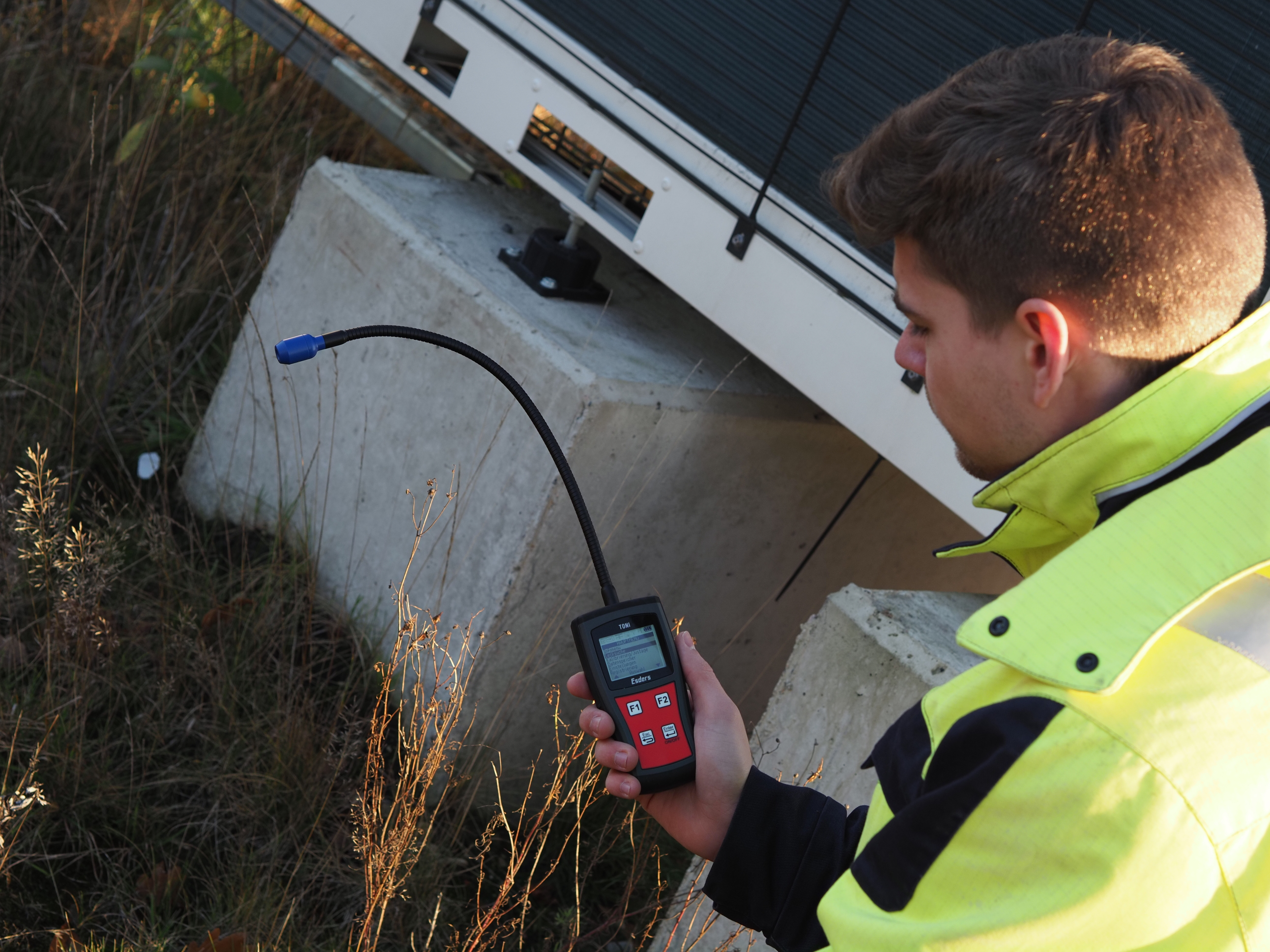

The almost 35 cm long gooseneck allows it to be used in difficult-to-reach installation locations. And thanks to magnets on the back of the housing, the device can be attached to the heat pump for complete logging of the transport phase. This means that even invisible damage can be documented.

The high-contrast LCD display ensures clear presentation of the measurement results, while automatic documentation via Esders Connect makes work more efficient – with reports that can be saved, compared and sent automatically.

Features of the TONI GasTest R

Detection of all common refrigerants such as R290, R32, R134a, R1234yf
Diffusion measuring head with fast response time
Gooseneck (34.5 cm) for hard-to-reach areas
IP64 housing with magnets & USB-C connection
Up to 17 hours of battery life
LCD graphic display with backlight
Digital documentation via Esders Connect app
Can also be used for transport monitoring of heat pumps
Practical accessories for use in the plumbing, heating and air conditioning sectors
Made in Germany – with fast service

Technical data

Display	LCD graphic display with 128 x 64 pixels + special symbols, backlit
Dimensions (without sensor head)	130 x 65 x 30 mm Length of gooseneck: 345 mm
Weight	Approx. 270 g
Ingress protection	IP64, excluding sensor head
Temperature range	0-60°C operating temperature
Operating time	Up to 17 hours in the leak detection mode with a fully charged battery, without lighting and at an ambient temperature of 20°C
Power supply	Long-lasting lithium-ion battery, rechargeable via USB-C
Cloud storage	Incl. after registration in the Esders Connect app
Alarm level	>95 dB (A)
Alarm signals	Visual, audible and vibration
Detection	Standard refrigerants are detectable in accordance with EN 14624, including R290, R32, R134a and R1234yf
