EDS2 automatic drain module
Optional module for the smart memo to automatically perform pressure drop tests and pressure reduction during water pressure tests. The EDS2 automatic drain is connected directly to the test head HANS with an integrated hose piece. On the outlet side, a suitable EDS2-V must be connected to the EDS2 automatic pressure release. The automatic pressure release only works in combination with an EDS2-V for digital recording of the water volume! The automatic drain is currently supported in the following processes: W 400-2: contraction procedure, standard procedure, infuence-minimized standard procedure W 101: contraction procedure, standard procedure EN 805: contraction procedure, standard procedure Mechanical connections: - hose connection with nipple series 5000 on the inlet side - on the outlet side coupling Series 5000 - bracket for fixing to the test stand pipe Electrical connections: - 1x socket B11 on the inlet side (power supply via smart memo) - on the outlet side 3x connector B11 for direct connection of further EDS2 sensors (no additional T-pieces necessary) max. pressure 30 bar max. flow 75 liters/minute
Option DVGW W 400-2
Menu-driven pressure test procedures for water pipes according to German DVGW W 400-2 - Contraction procedure - Accelerated normal procedure - Normal procedure - Influence-minimized normal procedure
Option EN 805
Menu-driven test procedures for pressure tests on water pipes according to rules and regulations of EN 805 (Europe): - Contraction procedure - Normal procedure
Electronic pressure test case for pressure tests with connection possibility of up to 5 external pressure or temperature sensors. - the test procedures are menu-guided and can be carried out with simple Data entry dialog - a freely programmable pressure test is included - optional test sequences for gas and water tightness tests e.g. according to DVGW, ÖVGW, EWE, Avacon, WEVG. - a subsequent addition of test sequences is possible easily - large, illuminated display, even in direct sunlight easy to read - Data entry and signature via touch display and foil keys - Stylus for the touch display included - Data memory for hundreds of measurements, depending on test sequence - Communication via Bluetooth for update, data transmission, printer - LTE / GPS module (optional) - robust case (IP 67) - Operating time approx. 200 hours, extension with power supply possible from outside Dimensions: 220 x 90 x 168 mm Weight: approx. 1450 g

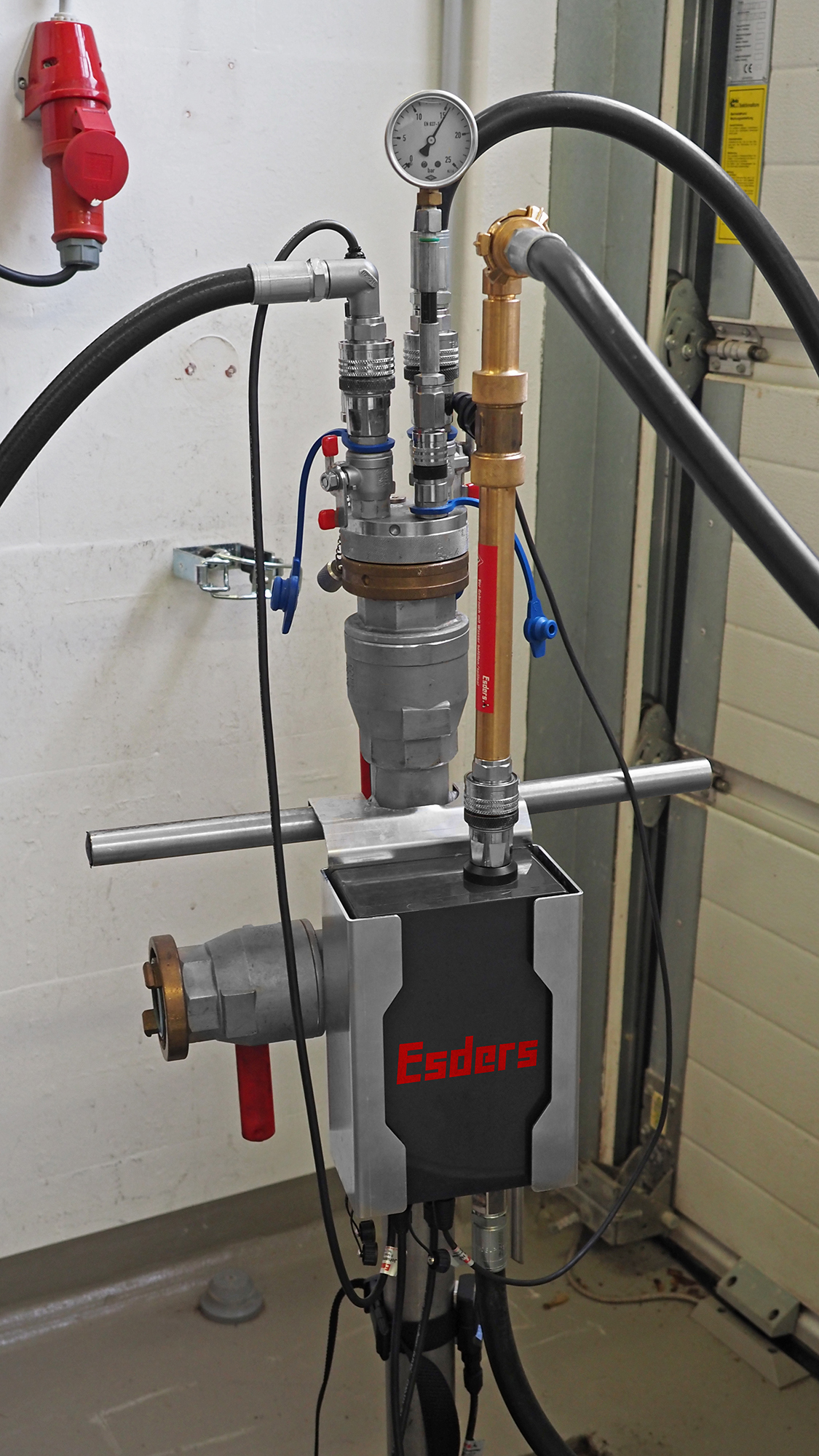

The EDS2 automatic water drain can be used when carrying out water pressure tests and is a necessary component to perform a fully automatic pressure test. It takes over the function of a valve and thus replaces the manual opening and closing of the ball valve during a pressure drop test or during a pressure release.
The EDS2 automatic water drain automatically performs all pressure drops provided for in the test sequence, these include:
• Pressure drop test
• Pressure reduction NV for PE pipelines directly before the main test
• Pressure reduction at the end of the test (if phase is activated in menu item settings)
As soon as the EDS2 automatic water drain and a suitable EDS2-V are connected, the pressure drain is performed automatically during the test sequence.
Detailed information on how to carry out a fully automatic pressure test using the contraction method can be found here.
